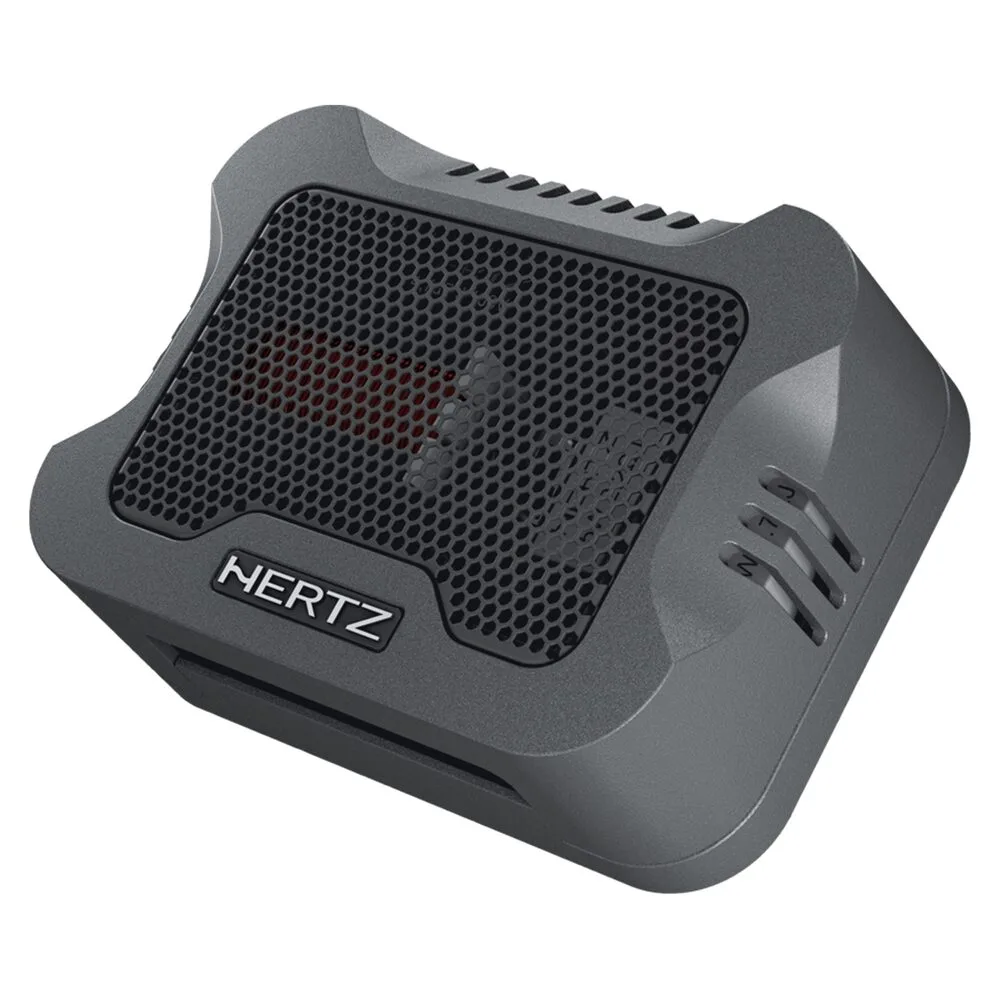

Hertz MPCX 2 TM3 Pro 3 Way Passive Crossover

Hertz MPCX 2 TM3 Pro 3 Way Passive Crossover

R1,785.00

The Hertz MPCX 2 TM3 Pro is a passive crossover designed to integrate the MP 70.3 midrange and MP 25.3 tweeter in a 3 way multi-amplified system.

SKU MPCX2TM.3Pro Categories , Tag

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

The Hertz MPCX 2 TM3 Pro is a 2 way passive crossover engineered for advanced 3 way car audio systems. It is specifically designed to integrate the Hertz MP 70.3 midrange and MP 25.3 tweeter, while working alongside an actively driven MP 165.3 or MP 165P.3 woofer for precise system matching and clean frequency distribution.

Built with high-quality components, the crossover includes a two-position tweeter level adjustment at 0 dB and +2 dB for fine tuning the high frequencies. Hertz also specifies premium bi-metallized polyester film capacitors, low resistance pure copper inductors, and a compact housing with a vented top grille for effective heat dissipation and easier installation.

  • Product Code: MPCX 2 TM.3 PRO
  • Type: 2 Way Passive Crossover
  • System Application: 3 Way Multi-Amplification
  • Tweeter Adjustment: 0 dB / +2 dB
  • Midrange Low Pass: 5.5 kHz at 6 dB per octave
  • Tweeter High Pass: 5.5 kHz at 12 dB per octave
  • Weight per Crossover: 0.16 kg
  • Dimensions: 102 x 76.5 x 37 mm
  • Brand: Hertz
  • Designed for MP 70.3 midrange and MP 25.3 tweeter integration
  • Built for 3 way multi-amplified audio systems
  • 0 dB and +2 dB tweeter level adjustment
  • Premium 160V bi-metallized polyester film capacitors
  • Low resistance pure copper inductors
  • Compact enclosure with top vent grille
  • Requires professional installation
  • Use only with compatible Hertz speaker components and the correct system design
  • Mount securely in a dry, ventilated location
  • Confirm crossover connections before powering the audio system

The Hertz MPCX 2 TM3 Pro is specifically intended for the Hertz MP 70.3 midrange and MP 25.3 tweeter in a 3 way multi-amplification system, combined with an actively driven MP 165.3 or MP 165P.3 woofer. It is not a universal crossover for unrelated speaker sets.
