Infinity REF9620CX 6×9 Component Speakers 125W RMS

Infinity REF9620CX 6×9 Component Speakers 125W RMS

Infinity Reference 6×9 2-way component speaker system with Plus One+ polypropylene woofers, 3/4 inch edge-driven textile tweeters, crossovers, 3 ohm impedance, 125W RMS per speaker.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU REF9620CX Category Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Frequently Purchased Together

No results found.

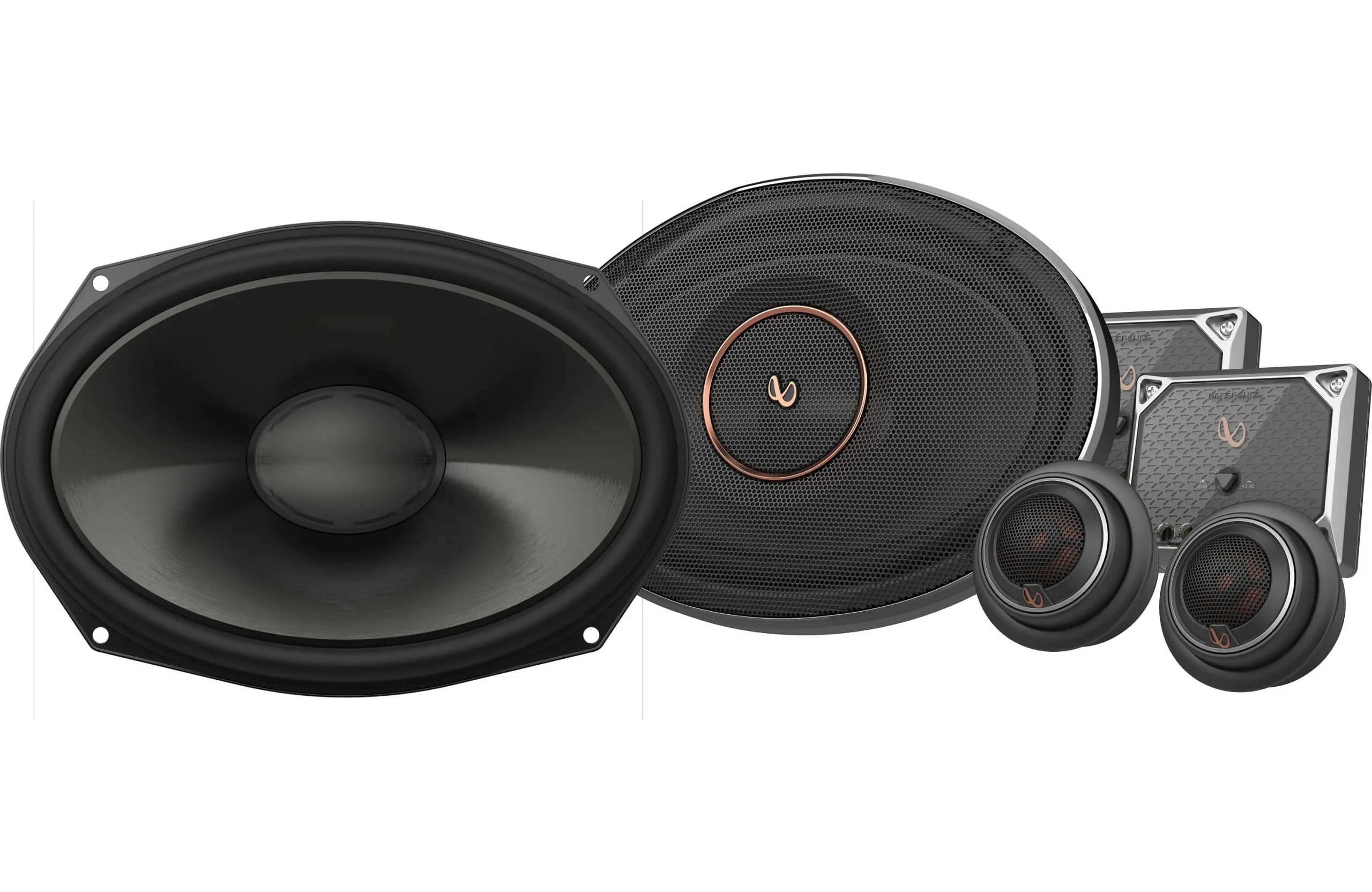

The Infinity REF9620CX is a 6×9 2-way component speaker system that includes two woofers, two tweeters, and two passive crossovers. Woofers use Plus One+ polypropylene cones with hi-roll rubber surrounds for extended bass output and the system delivers 125 watts RMS and 375 watts peak with a frequency response of 46-21,000 Hz and 93 dB sensitivity.

Tweeters are 3/4 inch edge-driven textile domes and mount using Infinity I-Mount or Starfish brackets for surface, flush, or factory grille installations. Crossovers provide selectable tweeter output levels (0 or +3 dB) and use screw terminal connections; the 3 ohm nominal impedance is intended to extract more power from factory or aftermarket receivers with small-gauge wiring.

  • Speaker size: 6 x 9 inches
  • System design: 2-way component
  • Woofer cone: Plus One+ polypropylene
  • Woofer surround: hi-roll rubber
  • Tweeter: 3/4 inch edge-driven textile dome
  • Impedance: 3 ohm nominal
  • Sensitivity: 93 dB (2.83 V at 1 m)
  • Frequency response: 46 – 21,000 Hz
  • Maximum RMS power: 125 W
  • Peak power handling: 375 W
  • Top-mount depth: 3-1/16 in
  • Bottom-mount depth: 3-11/16 in
  • Crossover features: selectable tweeter level 0 or +3 dB, screw terminal connections, four mounting holes
  • Crossover dimensions: 4 in x 1-1/8 in x 3-1/4 in (plus wire)
  • Warranty: 1 year parts, 1 year labor
  • Plus One+ polypropylene woofer cones for increased cone area and bass output
  • Hi-roll rubber surrounds for increased excursion and durability
  • 3/4 inch edge-driven textile dome tweeters for smooth highs
  • I-Mount and Starfish mounting options for flexible tweeter installation
  • Selectable tweeter output levels: 0 dB or +3 dB
  • 3 ohm nominal impedance for improved performance with factory wiring
  • 125 W RMS per speaker, 375 W peak power
  • Disconnect vehicle battery before beginning installation
  • Follow vehicle manufacturer mounting and wiring guidelines
  • Securely fasten speakers and crossovers to avoid vibration or contact with moving parts
  • Do not exceed rated RMS power to avoid damage
  • Consider professional installation for complex or custom fits
  • Vehicles with 6×9 factory speaker openings
  • Compatible with most factory and aftermarket receivers
  • 3 ohm design helps extract more power from systems with small-gauge factory wiring
