Monoblock Class D subwoofer amplifier delivering up to 500 watts into 2 ohm with NexD switching, differential-balanced inputs, variable low-pass 50-500Hz and remote level option.
Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.
No results found.

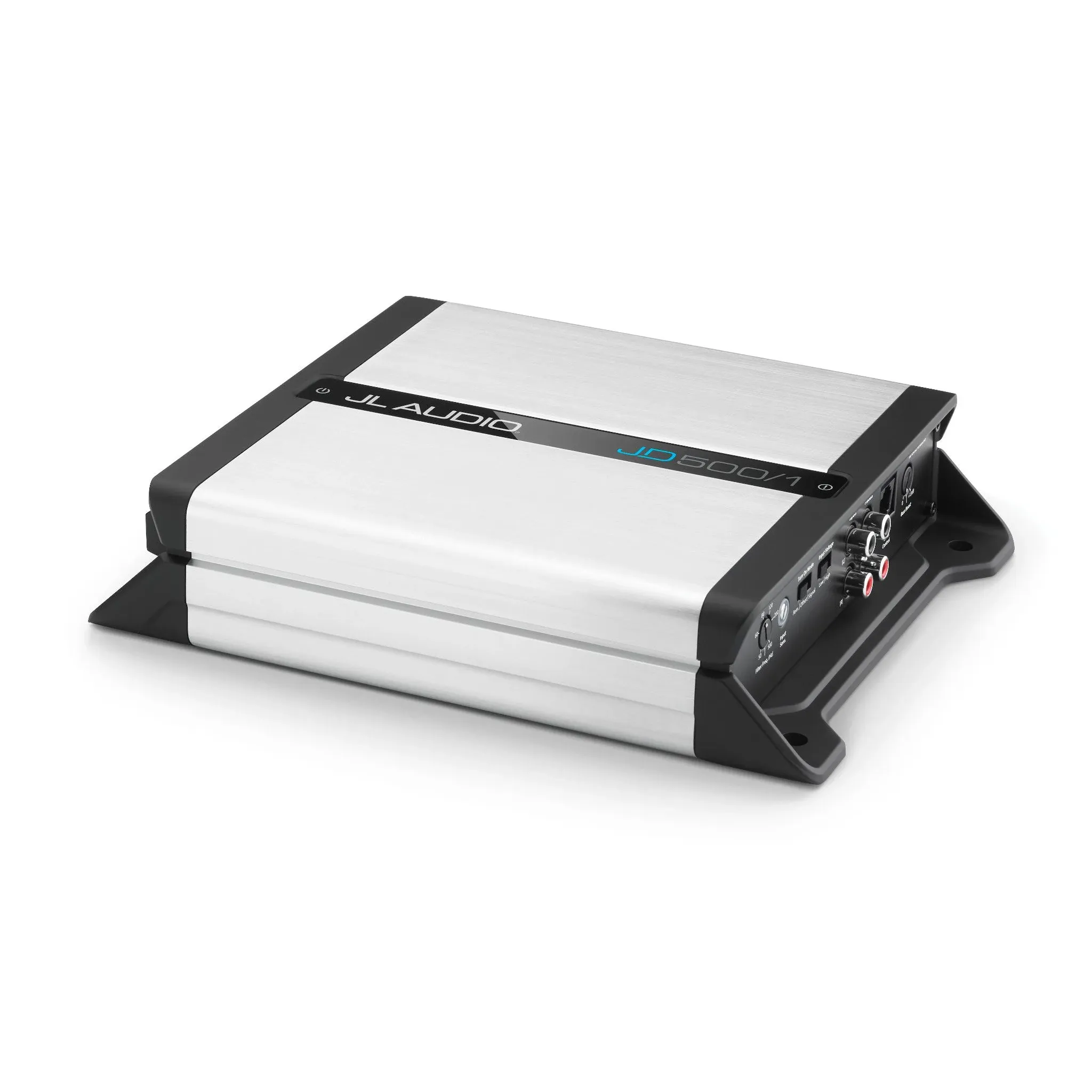

The JL Audio JD500/1 is a monoblock Class D subwoofer amplifier rated up to 500 W x1 at 2 ohm (14.4V) and provides high real-world power with efficient NexD switching technology for low distortion and compact size.
The amplifier features an extruded aluminum chassis with controls on the input panel and power/speaker connections on the opposite end. Signal processing includes a 12 dB per octave low-pass filter adjustable from 50 to 500 Hz, variable bass boost, an LED clipping indicator around the input sensitivity control, and buffered pass-through preamp outputs.
Connectivity and control include dual-range differential-balanced inputs that accept line-level and speaker-level signals, automatic turn-on via signal sensing or DC offset sensing, and compatibility with an optional RBC-1 remote level control for driver seat subwoofer adjustment.
