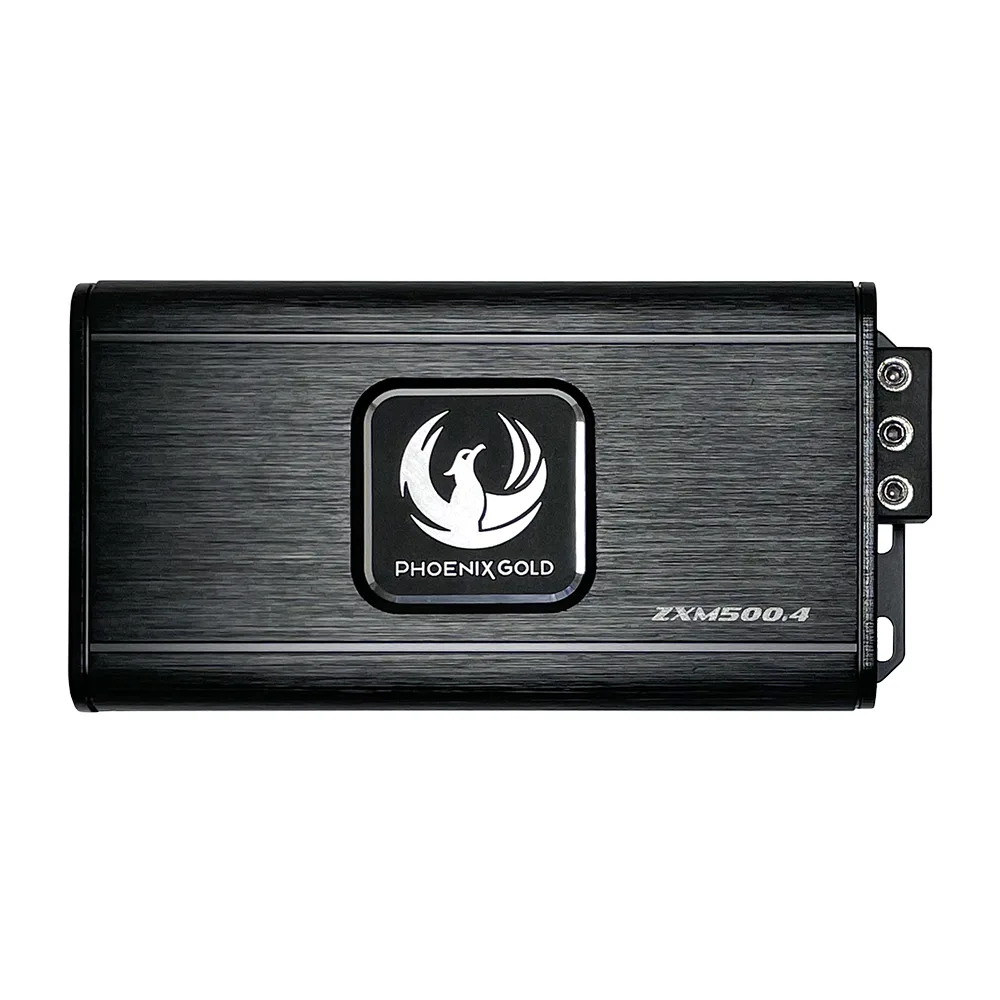

Phoenix Gold ZXM500.4 – 4-Channel Mini Amplifier

Phoenix Gold ZXM500.4 – 4-Channel Mini Amplifier

R3,499.00

Compact four-channel Class-D amplifier delivering flexible stereo or bridged power, with adjustable crossovers and high-level auto turn-on for space-limited vehicle audio system installations.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU ZXM500.4 Category Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Compact four-channel Class-D amplifier delivering 80W RMS per channel at 4 ohms or 125W RMS per channel at 2 ohms. Channels can be bridged for 250W RMS x 2 at 4 ohms.

Adjustable high-pass and low-pass filters support full-range, component or bridged configurations. High- and low-level inputs, high-level auto turn-on and selectable two- or four-channel input modes support integration in space-limited installations.

  • Product code: ZXM500.4
  • Type: Class-D 4-channel mini amplifier
  • RMS power: 125W x 4 at 2 ohms
  • RMS power: 80W x 4 at 4 ohms
  • Bridged RMS power: 250W x 2 at 4 ohms
  • Frequency response: 10Hz–30kHz
  • Signal-to-noise ratio at full power: 90dB
  • Total harmonic distortion: less than 1%
  • Low-pass filter: 40Hz–400Hz, 12dB/octave
  • High-pass filter: 40Hz–400Hz, 12dB/octave
  • Input sensitivity: 0.34V–5.7V
  • Input modes: 2-channel or 4-channel
  • Operating voltage: 7V–16.5V
  • Dimensions: 149 x 83.1 x 34.8mm excluding mounting feet; 165 x 83.1 x 34.8mm including feet
  • Full Class-D four-channel design
  • Stable at 2 ohms stereo
  • Bridgeable to 250W RMS x 2 at 4 ohms
  • Adjustable high-pass and low-pass filters
  • Select between two- and four-channel inputs
  • High-level input auto turn-on
  • Low EMI design and FM noise rejection
  • Short-circuit, thermal and high/low-voltage protection
  • Low-level input
  • High-level speaker input
  • Selectable 2-channel or 4-channel input mode
  • Automatic turn-on with high-level input
  • Disconnect vehicle battery before installation
  • Ensure adequate ventilation and avoid enclosing the amplifier
  • Use properly rated wiring and fuses for power and speaker connections
  • Securely mount the amplifier to prevent movement or vibration
  • Consult a professional installer if unsure about wiring or setup
  • Cars
  • Boats
  • Motorcycles
  • OEM and aftermarket audio systems
