Phoenix Gold ZXM600.3 3-Channel Class D Amplifier 600W

Phoenix Gold ZXM600.3 3-Channel Class D Amplifier 600W

R3,999.00

Compact Class D three-channel amplifier delivering efficient, low-distortion power to full-range speakers plus a dedicated sub channel, adjustable bass boost, remote control, and flexible high- and low-level inputs.

SKU ZXM600.3 Category Brand:

The Phoenix Gold ZXM600.3 is a compact three-channel Class D car amplifier designed to power a front full-range system and a dedicated subwoofer channel in a small chassis. The amplifier offers rated channel configurations of 2x75W + 230W at 4 ohm and 2x125W + 350W at 2 ohm, delivering up to 600W RMS total depending on load and wiring.

Built for tight installations, the ZXM600.3 features HP and LP filters for the full-range channels, a 24dB low-pass filter for the sub channel, 0-18dB bass boost with included remote bass knob, high- and low-level inputs, a quick connector for power, ground and remote, and dimensions of 165x83x35mm for compact fitment in most 12V vehicles.

  • Channel configuration: 3-channel (2 full-range channels plus dedicated sub channel)
  • Rated power at 14.4V <1% THD: 2x75W + 230W @ 4 ohm
  • Rated power at 14.4V <1% THD: 2x125W + 350W @ 2 ohm

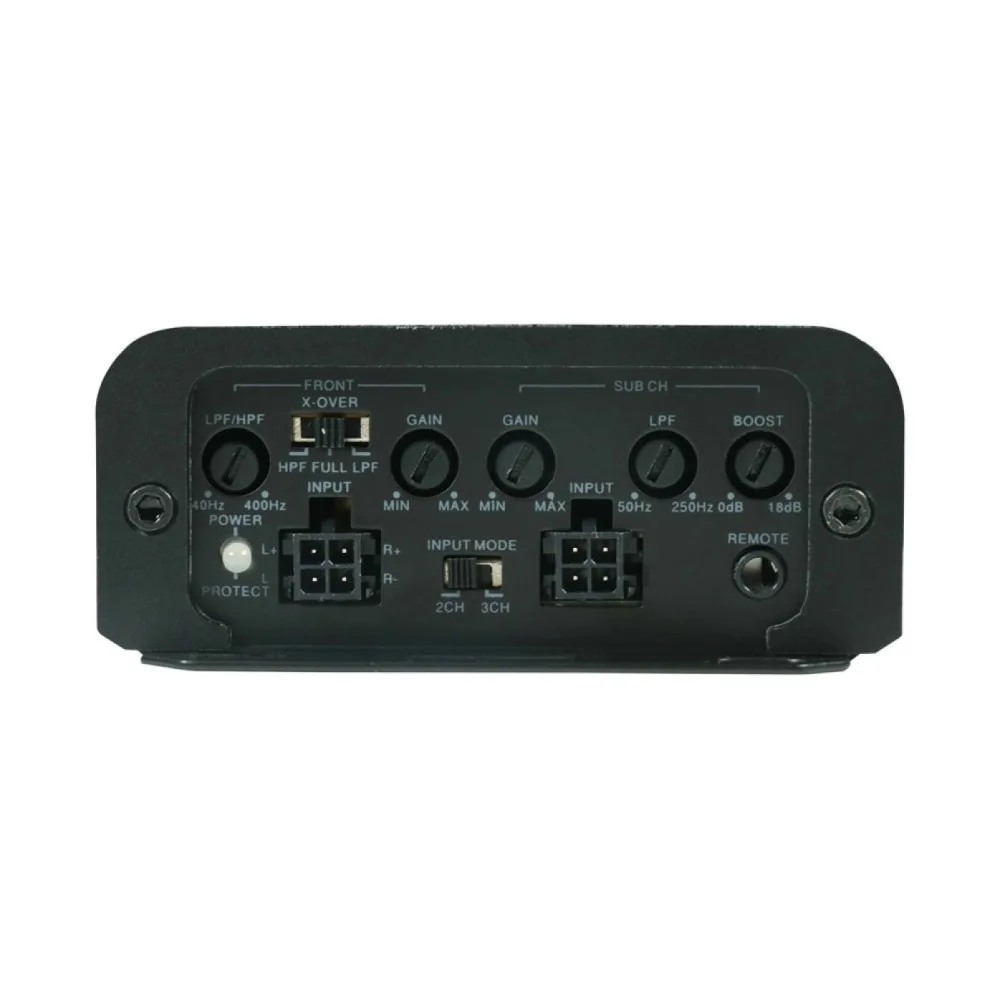

  • Filters: HP and LP for full-range channels 48-480Hz 12dB, LP for sub channel 24dB
  • Bass boost: 0-18dB
  • Input sensitivity: 0.2V-10.0V
  • Signal to noise ratio: >90dB
  • Total harmonic distortion: <1.0%
  • Remote bass knob: included

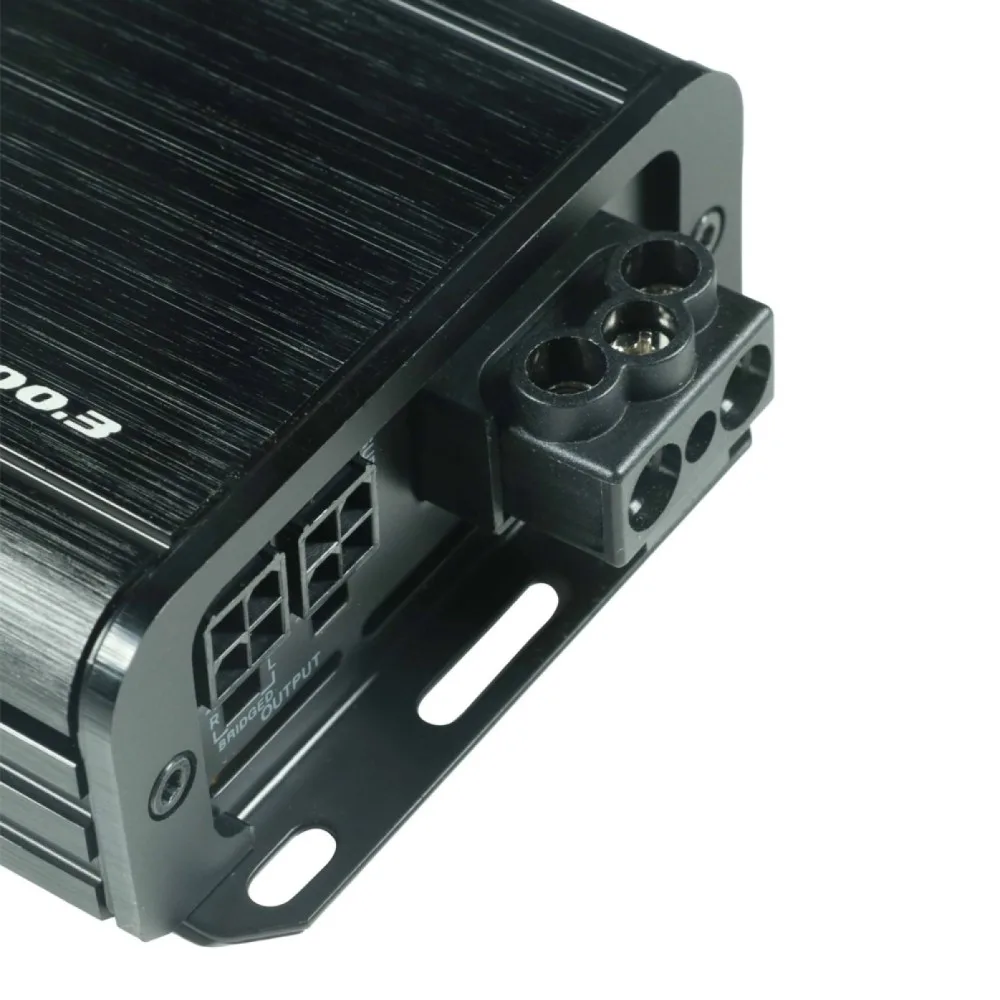

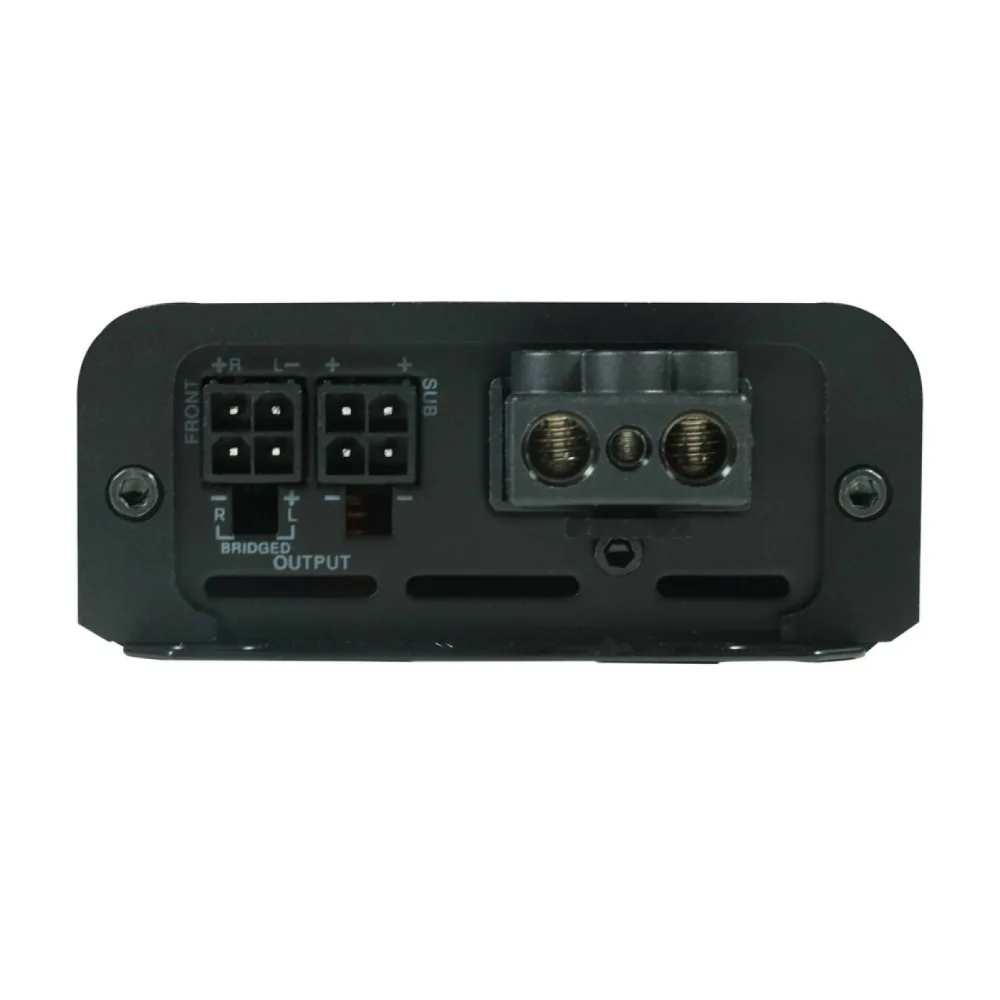

  • Power connector: quick connector for power, ground, and remote
  • Dimensions: 165x83x35mm
  • Operating voltage: 14.4V nominal
  • Compact Class D design for high efficiency and small footprint
  • 3-channel output for front full-range plus dedicated sub channel
  • Channel power ratings: 2x75W+230W @4 ohm and 2x125W+350W @2 ohm
  • HP and LP filters for precise crossover control and 24dB LP for sub
  • 0-18dB bass boost with included remote gain control
  • High-level and low-level inputs for flexible integration
  • Quick connector for simplified power, ground, and remote wiring
  • Signal to noise ratio >90dB and THD <1.0% for clean output
  • Disconnect vehicle battery before installation
  • Use appropriate inline fusing at the battery
  • Ensure proper ground connection to chassis
  • Avoid installing near heat sources or where airflow is blocked
  • Secure amplifier to prevent movement during vehicle operation
  • Most 12V cars
  • Most 12V SUVs
  • Most 12V light trucks
  • Requires sufficient mounting space and compatible electrical system
