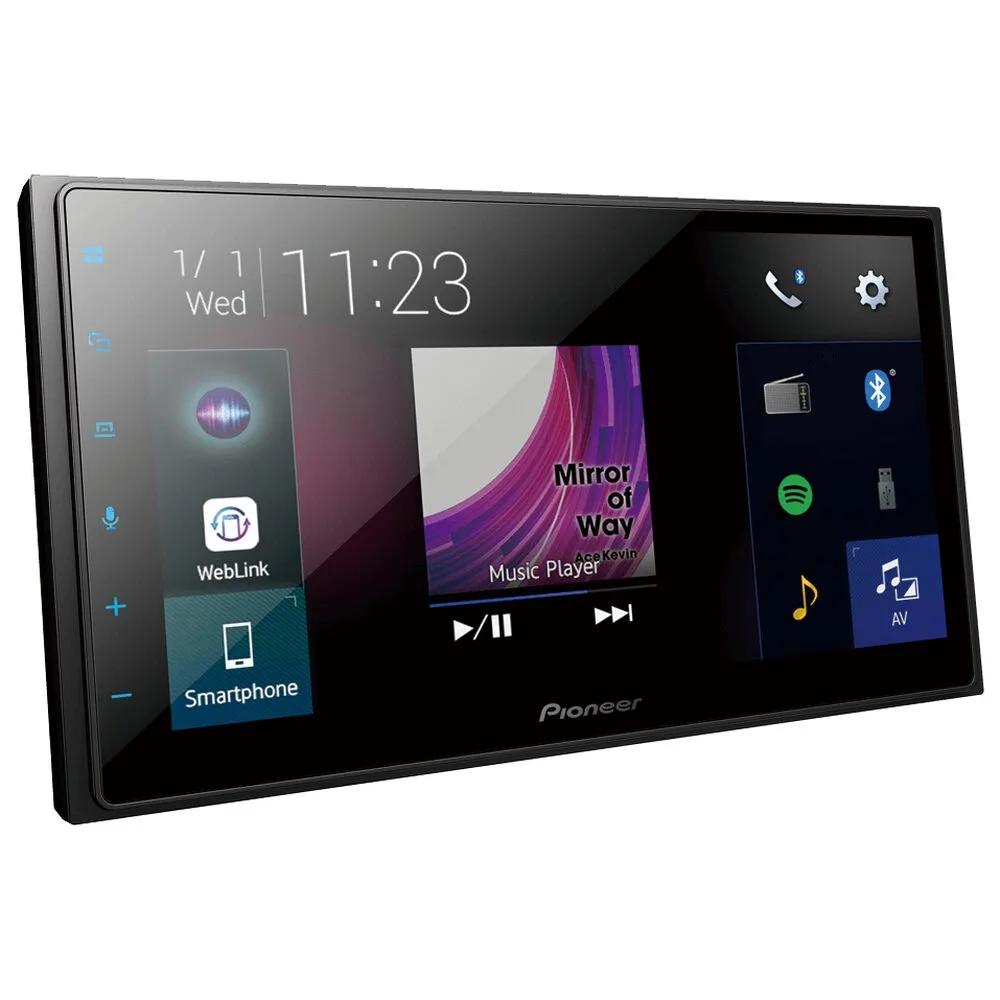

Pioneer DMH-Z5350BT Double DIN 6.8in Touchscreen CarPlay

universal-fit

Pioneer DMH-Z5350BT Double DIN 6.8in Touchscreen CarPlay

R6,999.00

Pioneer DMH-Z5350BT is a 6.8 inch double DIN touchscreen media receiver with Apple CarPlay, Android Auto, Bluetooth and USB for smartphone integration and audio playback.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU DMH-Z5350BT Category Tag Brand:

Suitable for:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Frequently Purchased Together

No results found.

This double-DIN multimedia receiver features a 6.8-inch WVGA capacitive touchscreen with wired Apple CarPlay, wired Android Auto and WebLink smartphone integration. Compatible navigation, calling, messaging and music applications can be controlled through the receiver while the connected phone charges through the rear USB port.

Dual Bluetooth allows two compatible phones to remain connected for hands-free calling and wireless audio streaming. USB media playback supports common audio, video and image formats, including FLAC lossless audio and Full HD video files.

Audio controls include a 13-band graphic equaliser, manual time alignment, high-pass and low-pass filters, subwoofer control and 3-way Network Mode. Three pairs of 4-volt RCA pre-outs support external amplifiers, while two camera inputs allow compatible front and rear cameras to be added. Vehicle-specific installation accessories may be required.

  • Product Code: DMH-Z5350BT
  • Type: Double-DIN multimedia AV receiver
  • Display: 6.8-inch capacitive touchscreen
  • Resolution: WVGA 800 × 480
  • Display Format: 16:9 with LED backlight
  • Colour Panel: 24-bit True Colour
  • Apple CarPlay: Wired connection
  • Android Auto: Wired connection
  • WebLink: Supported
  • Bluetooth: Built-in dual-phone connection
  • Bluetooth Profiles: HFP, A2DP, AVRCP and SPP
  • Smartphone Pairing Memory: Up to 5 devices
  • Built-in Amplifier: MOSFET 50 W × 4 maximum
  • Continuous Power Output: 22 W × 4 at 4 ohms
  • RCA Pre-outs: 3 pairs, 4 V — front, rear and subwoofer
  • D/A Converter: 96 kHz/24-bit
  • Equaliser: 13-band graphic equaliser
  • Audio Adjustment: Manual time alignment, HPF, LPF and subwoofer control
  • Speaker Configuration: Standard Mode or 3-Way Network Mode
  • Auto EQ and Auto Time Alignment: Supported with optional CD-MC20 microphone
  • USB Port: Single rear USB port
  • USB Charging: Up to 1.5 A for compatible Android devices
  • AUX Input: Rear 3.5 mm audio/video input
  • Camera Inputs: Two camera inputs
  • Video Output: Composite video output
  • Steering-Wheel Control: Supported with a compatible interface
  • Radio: AM/FM tuner with RDS
  • USB Audio Playback: MP3, WMA, AAC, WAV and FLAC
  • USB Video Playback: MPEG-4, DivX, WMV and Full HD video
  • USB Image Playback: JPEG slideshow
  • Compatible USB Storage: NTFS storage supported
  • CD/DVD Mechanism: Not included
  • Rated Power Supply: 14.4 V DC
  • Maximum Current Consumption: 10 A
  • Chassis Dimensions: 178 × 100 × 164 mm
  • Front Nose Dimensions: 171 × 97 × 3 mm
  • Weight: 1.1 kg
  • 6.8-inch WVGA capacitive touchscreen with responsive multi-touch operation
  • 24-bit True Colour display with LED backlighting
  • Wired Apple CarPlay for compatible navigation, calling, messaging and music applications
  • Wired Android Auto with compatible Google Maps, Waze, calling and media functions
  • WebLink support for compatible smartphone applications and connected content
  • Dual Bluetooth connection for two compatible smartphones
  • Bluetooth hands-free calling and wireless audio streaming
  • Spotify control from compatible iPhone and Android devices
  • Rear USB connection for smartphone integration, charging and media playback
  • USB quick charging up to 1.5 A for compatible Android devices
  • Playback of MP3, WMA, AAC, WAV and FLAC audio files from USB storage
  • Full HD, MPEG-4, DivX and WMV video playback from USB storage
  • 13-band graphic equaliser for detailed sound adjustment
  • Manual time alignment, high-pass and low-pass filters, and subwoofer control
  • 3-way Network Mode for high, midrange and low-frequency speaker configurations
  • Advanced Sound Retriever for compressed digital audio and Bluetooth streams
  • Three pairs of 4-volt RCA pre-outs for front, rear and subwoofer amplifier connections
  • Dual camera inputs for compatible rear-view and additional front or view cameras
  • Parking-assist guidelines when configured with a compatible reversing camera
  • Customisable interface with five display colours and 112 key-illumination colours
  • Steering-wheel control integration using a compatible vehicle-specific interface
  • Composite video output for a compatible rear passenger display
  • AM/FM radio tuner with RDS and station presets
  • Professional installation is recommended.
  • Use only in a 12-volt, negative-earth vehicle electrical system.
  • Disconnect the negative battery terminal before installation.
  • Do not install where the receiver may obstruct the driver’s view, vehicle controls or airbag operation.
  • Secure wiring away from the steering column, pedals, gear selector and other moving components.
  • Connect the handbrake interlock according to the manufacturer’s instructions. Do not disable or bypass it.
  • Do not operate the touchscreen or watch video while driving.
  • Do not rely solely on a connected camera when reversing or manoeuvring the vehicle.
  • Follow the manufacturer’s installation and operating instructions.

Designed for vehicles that can accommodate a double-DIN receiver. Compatibility depends on the vehicle’s dashboard design, factory audio system, wiring and installed equipment.

Note: Always confirm vehicle specifications before purchase. A vehicle-specific fascia kit, wiring adapter, antenna adapter, steering-wheel control interface or factory-amplifier retention interface may be required.
