Pioneer TS-R1350S – 13 cm 3-Way Coaxial Speakers
universal-fit

Pioneer TS-R1350S – 13 cm 3-Way Coaxial Speakers

R695.00

Compact 13 cm 3-way coaxial speakers with a multi-layer mica matrix woofer cone and integrated midrange and tweeter drivers, rated at 35 W nominal and 250 W maximum input.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU TS-R1350S Category Tag Brand:

Suitable for:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

13 cm 3-way coaxial speakers

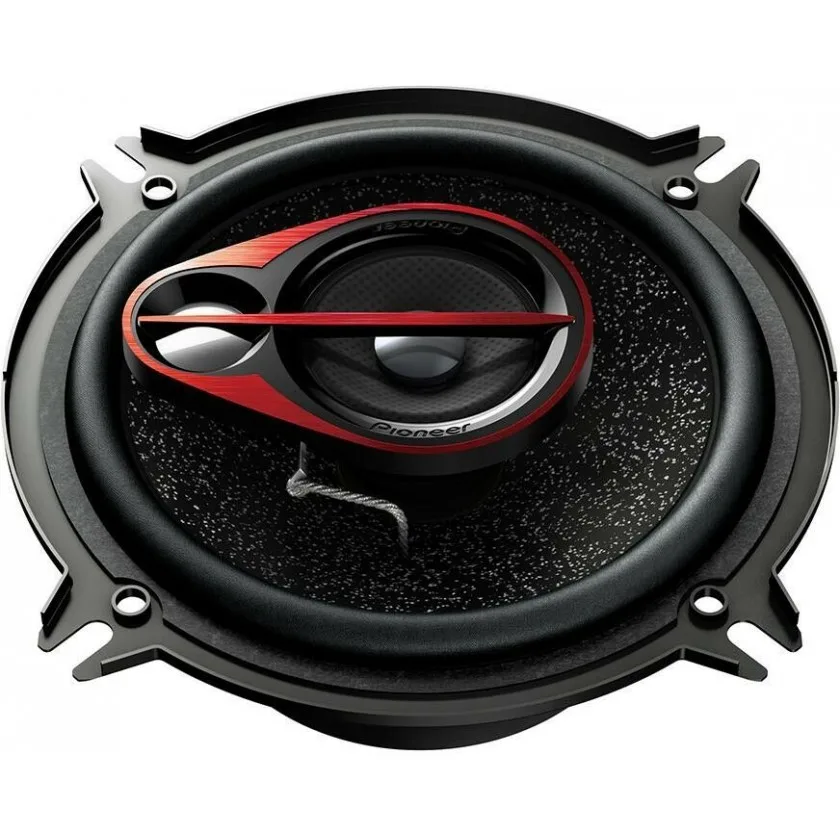

The TS-R1350S is a pair of 13 cm 3-way coaxial car speakers. A multi-layer mica matrix woofer cone is combined with an integrated midrange driver and an integrated tweeter to provide full-range reproduction from a compact unit.

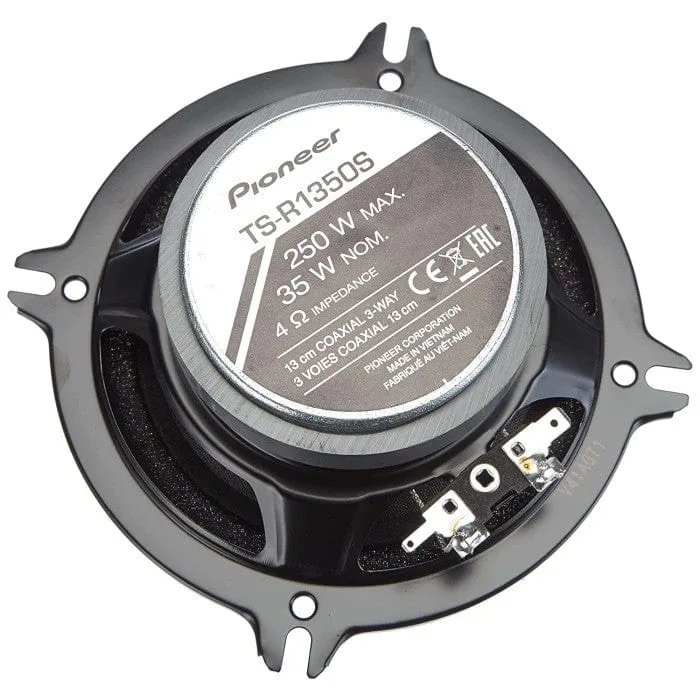

Each speaker is rated at 35 W nominal and 250 W maximum input, with a 44 Hz–31 kHz frequency response, 89 dB sensitivity and 4 ohm impedance. Installation needs a 111 mm cut-out and 47 mm mounting depth, and protective speaker grilles are included.

250 WMaximum input power
35 WNominal input power
89 dBSensitivity
4 ΩImpedance

Technical specifications

Product codeTS-R1350S
Type3-way coaxial car speakers
SeriesR-Series
Speaker size13 cm / 5.25 inches
Maximum input power250 W
Nominal input power35 W
Frequency response44 Hz–31 kHz
Sensitivity89 dB
Impedance4 ohms
Dimensions155 mm × 72 mm
Mounting depth47 mm
Cut-out hole111 mm
Woofer materialMulti-layer mica matrix cone
MagnetFerrite
Weight0.68 kg per speaker including accessories

Compact 13 cm 3-way coaxial speaker design.

Woofer cone made from multi-layer mica matrix.

Integrated 42 mm midrange driver for the mid frequencies.

Integrated 15 mm tweeter for high frequencies.

Handles 35 W nominal and 250 W maximum input power.

Protective speaker grilles are included with the speakers.

Connectivity & integration

Connectivity information not published by manufacturer.

Professional installation recommended.
Follow manufacturer installation guidelines.

Vehicle compatibility

Universal replacement application where the vehicle accepts 13 cm / 5.25-inch speakers. Required cut-out hole is 111 mm, with a mounting depth of at least 47 mm, for a 4-ohm speaker circuit. Confirm vehicle specifications before installation. Additional installation accessories or connector adaptors may be required.

What’s in the box

Package contents not published by manufacturer.
