Pioneer TS-W32S4 – 12-inch Single Voice Coil Subwoofer
universal-fit

Pioneer TS-W32S4 – 12-inch Single Voice Coil Subwoofer

12-inch passive component subwoofer with a single 4 ohm voice coil, rated at 400 W RMS and 1,500 W maximum music power, with a rubber surround and push terminals.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU TS-W32S4 Category Brand:

Suitable for:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

12-inch single voice coil component subwoofer

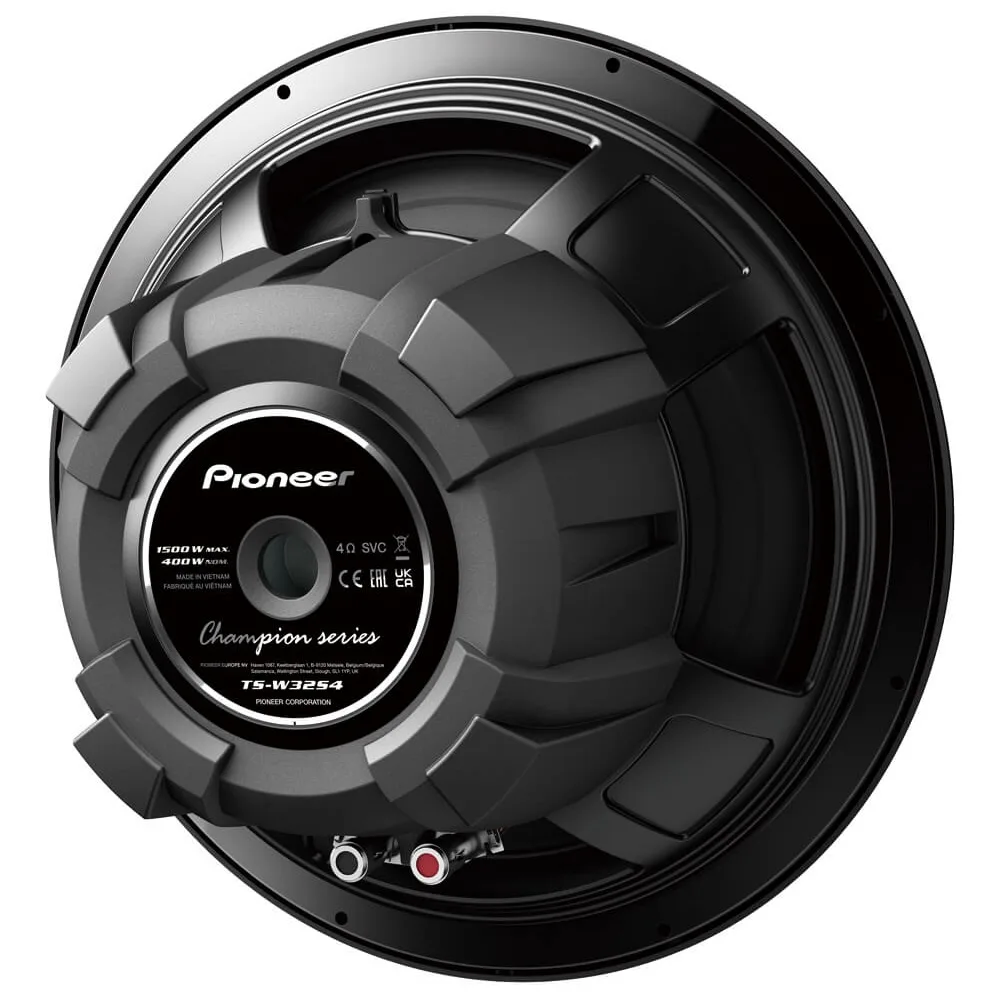

The TS-W32S4 is a 12-inch (30 cm) component subwoofer from the Champion Series. It has a single 4 ohm voice coil and is rated at 400 W RMS, with a maximum music power of 1,500 W for low-frequency reproduction.

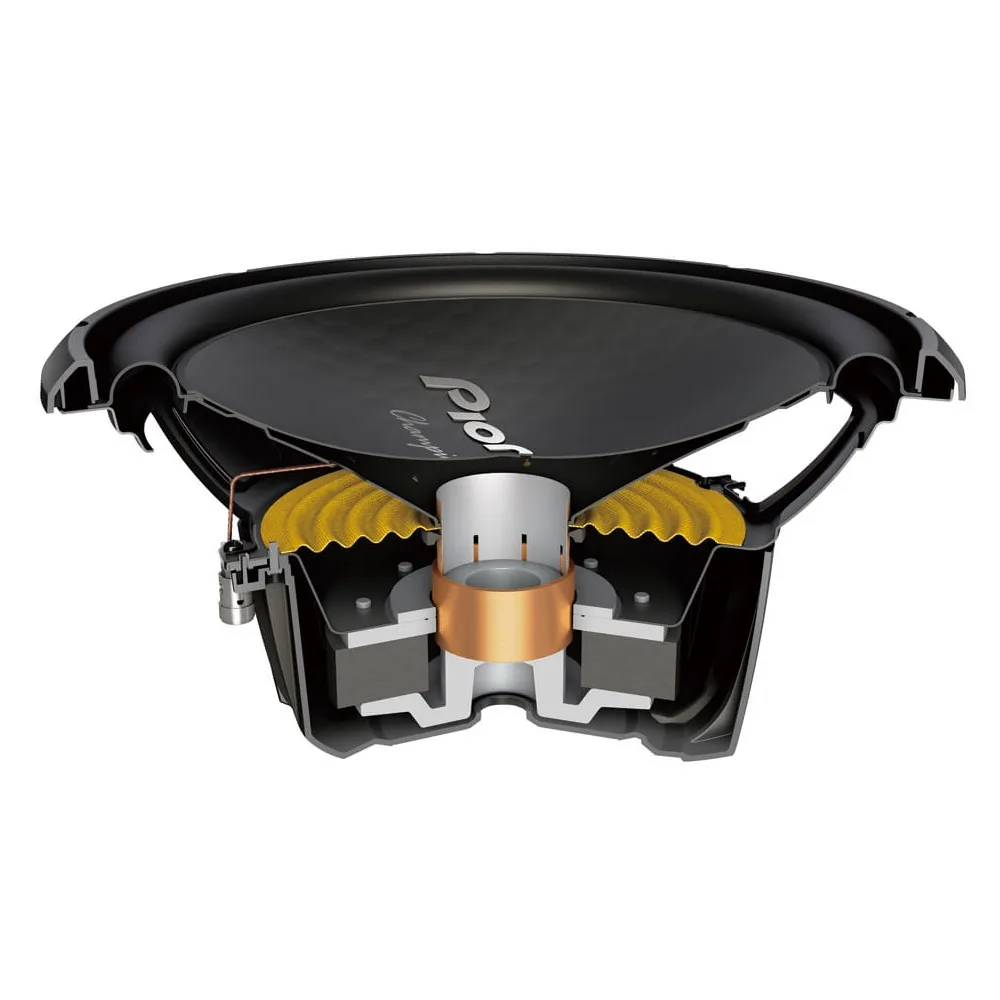

The subwoofer uses a high-rigidity composite seamless cone with honeycomb and a large magnet, a durable rubber surround and a high heat resistance voice coil. Push terminals are fitted for easier installation. The recommended enclosure volume is 35.4 litres, with a cut-out of 281 mm diameter.

400 WRMS power
1,500 WMaximum music power
4 ΩImpedance
30 cmSize (12-inch)

Technical specifications

Product codeTS-W32S4
TypePassive component subwoofer
GradeChampion Series
Size30 cm (12-inch)
Maximum music power1,500 W
RMS power400 W
Frequency response22 Hz to 1.6 kHz
Sensitivity (1 W / 1 m)90 dB
ImpedanceSingle 4 Ω
Mounting depth146 mm
Cut-out dimensionsø281 mm
Resonance frequency30 Hz
Magnet weight1,300 g
Recommended enclosure35.4 litres

Durable rubber surround for high power handling and endurance.

High heat resistance voice coil.

High-rigidity IMPP composite seamless cone with honeycomb construction.

Large magnet designed for deeper bass output.

Seamless large cone and magnet cover for a tough body design.

Push terminals for easier installation.

Connectivity & integration

The subwoofer is fitted with push terminals for easier installation.

Professional installation recommended.
Follow manufacturer installation guidelines.

Vehicle compatibility

Universal component subwoofer. Vehicle-specific fitment is not published by the manufacturer. Confirm dimensions, connection requirements, and application before purchase.

What’s in the box

Package contents not published by manufacturer.
