Wāvtech link8 – 8-Channel Line Output Converter

Wāvtech link8 – 8-Channel Line Output Converter

R2,850.00

Active 8-channel line output converter with signal summing, AUX input, and wired remote control for integrating aftermarket amplifiers with factory audio systems.

SKU Wāvtech link8 Category Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

The Wāvtech link8 is an active 8-channel line output converter and summing processor designed for adding aftermarket amplifiers to multi-channel factory audio systems.

It accepts speaker-level and 3.5mm AUX inputs, provides up to 10Vrms RCA output per channel, and supports 2, 4, 6, or 8-channel input configurations with 2-, 3-, or 4-way signal summing.

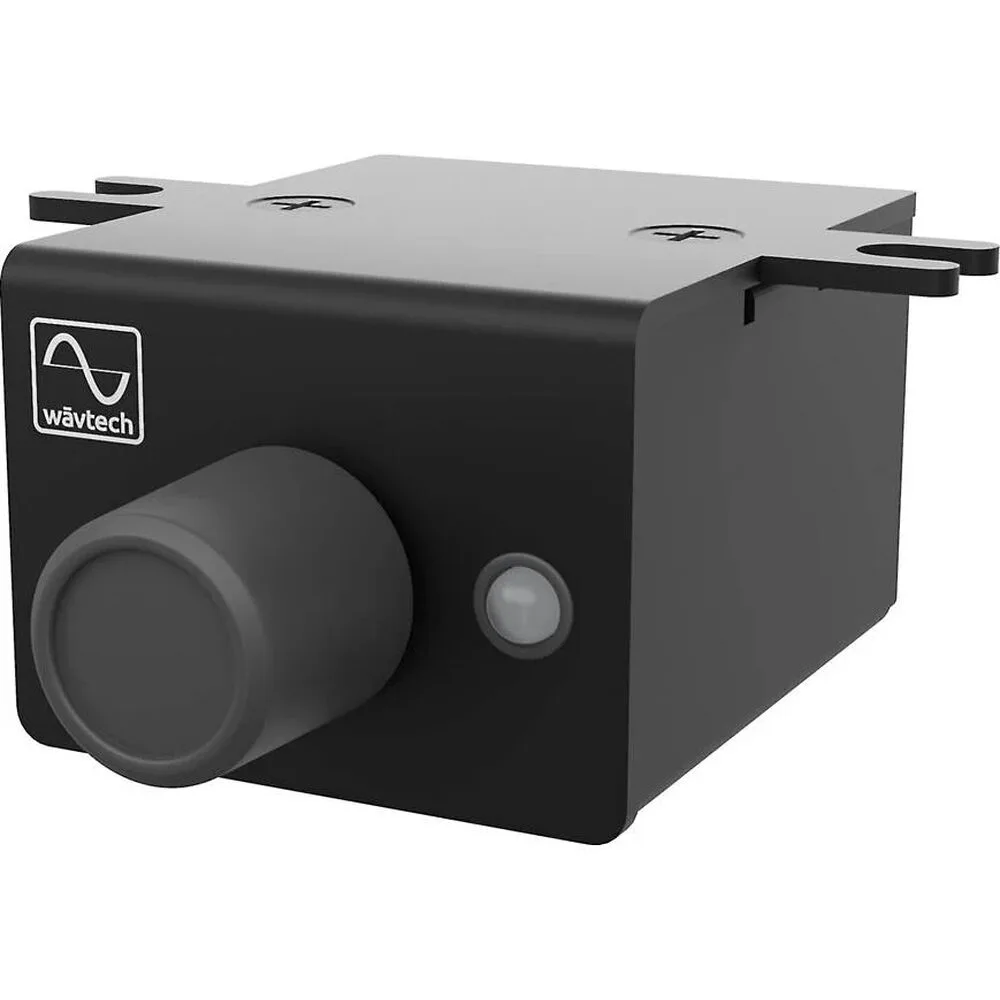

The included wired remote allows control of master volume, AUX volume, channel 7/8 level, and source selection depending on the selected remote mode.

  • Product Code: LINK8
  • Type: Active 8-channel line output converter and summing processor
  • Inputs: Speaker-level inputs and 3.5mm AUX input
  • Outputs: 8-channel RCA line outputs
  • Maximum Output Voltage: 10Vrms
  • Speaker Input Sensitivity: 2-40Vrms
  • Aux Input Sensitivity: 0.5-5Vrms
  • Output Impedance: 50 ohms
  • Frequency Response: 10Hz-70kHz +0/-1dB
  • THD+N: 0.05% at 10V output
  • Auto Turn-On: DC offset, audio detect, or remote input
  • Processor Dimensions: 7.5″W x 1.25″H x 5.875″D
  • Remote Dimensions: 1.5″W x 1.125″H x 1.75″D
  • Brand: Wāvtech

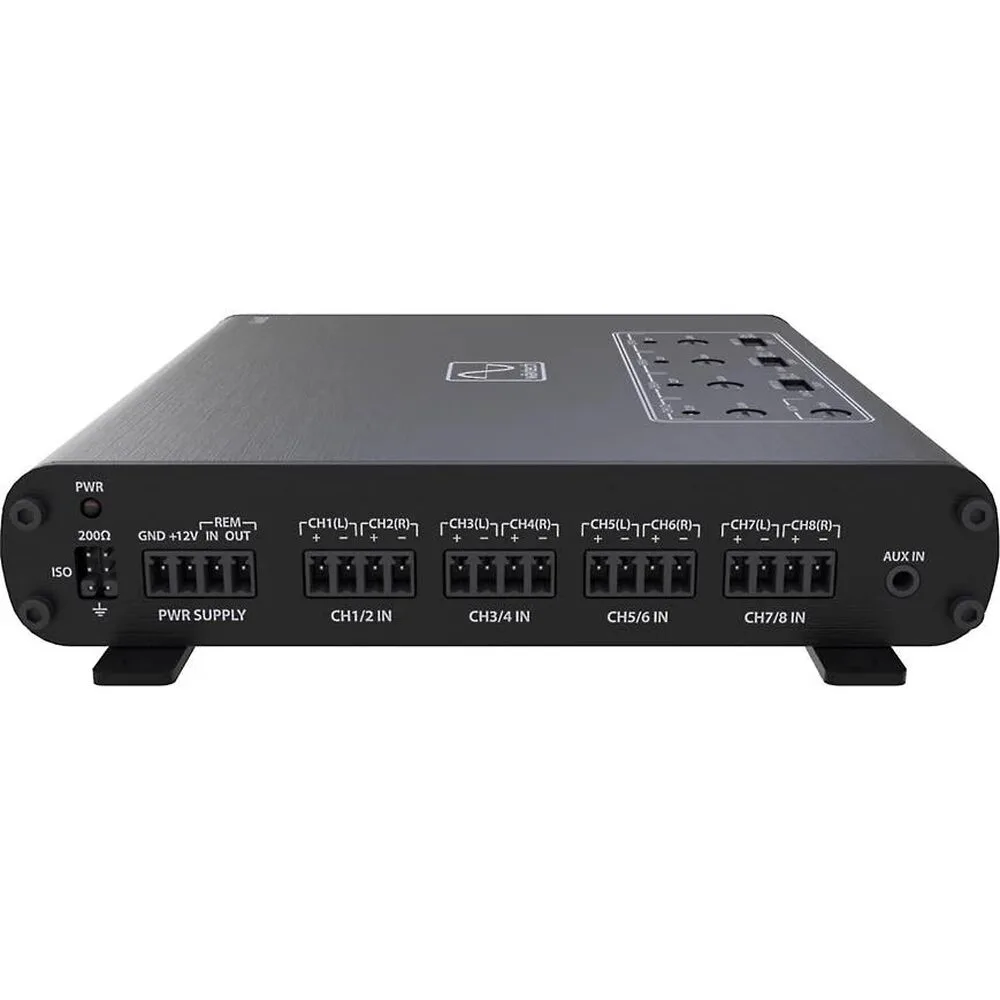

  • Speaker-level input terminals for channels 1-8
  • 3.5mm AUX input for secondary audio sources

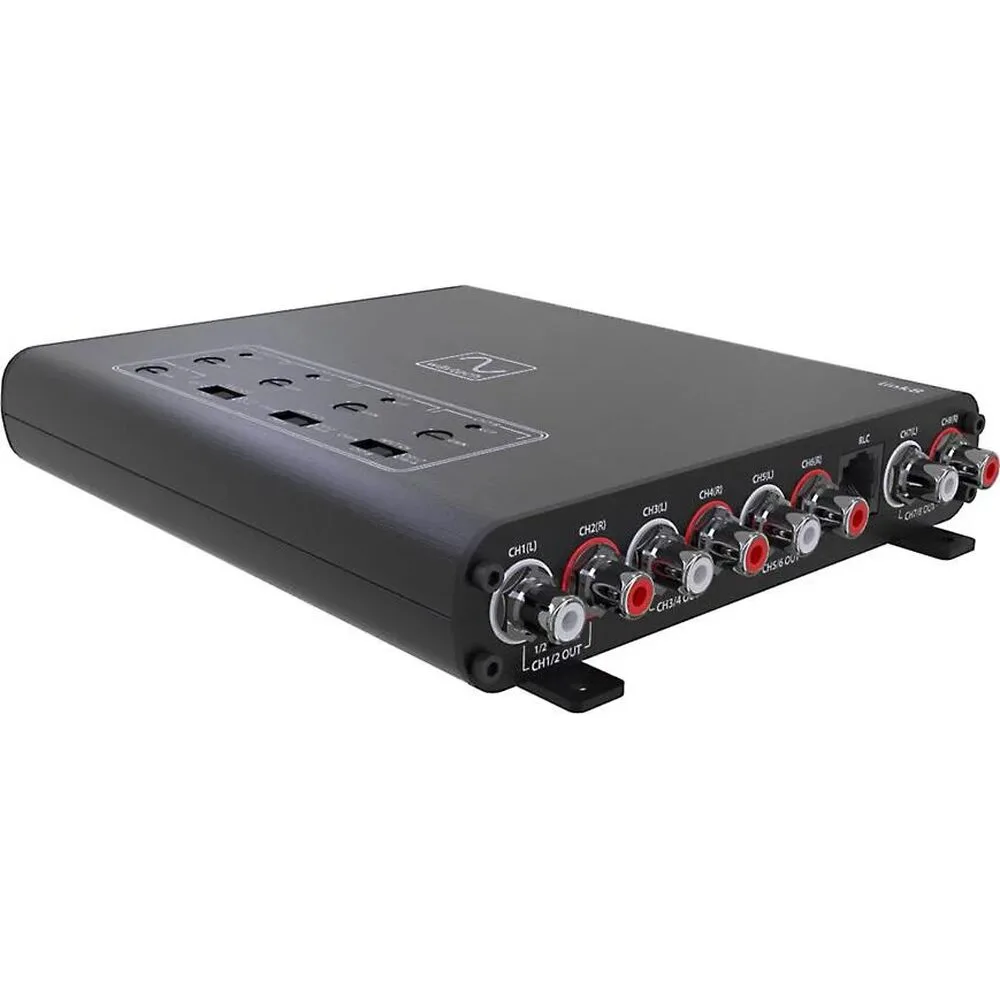

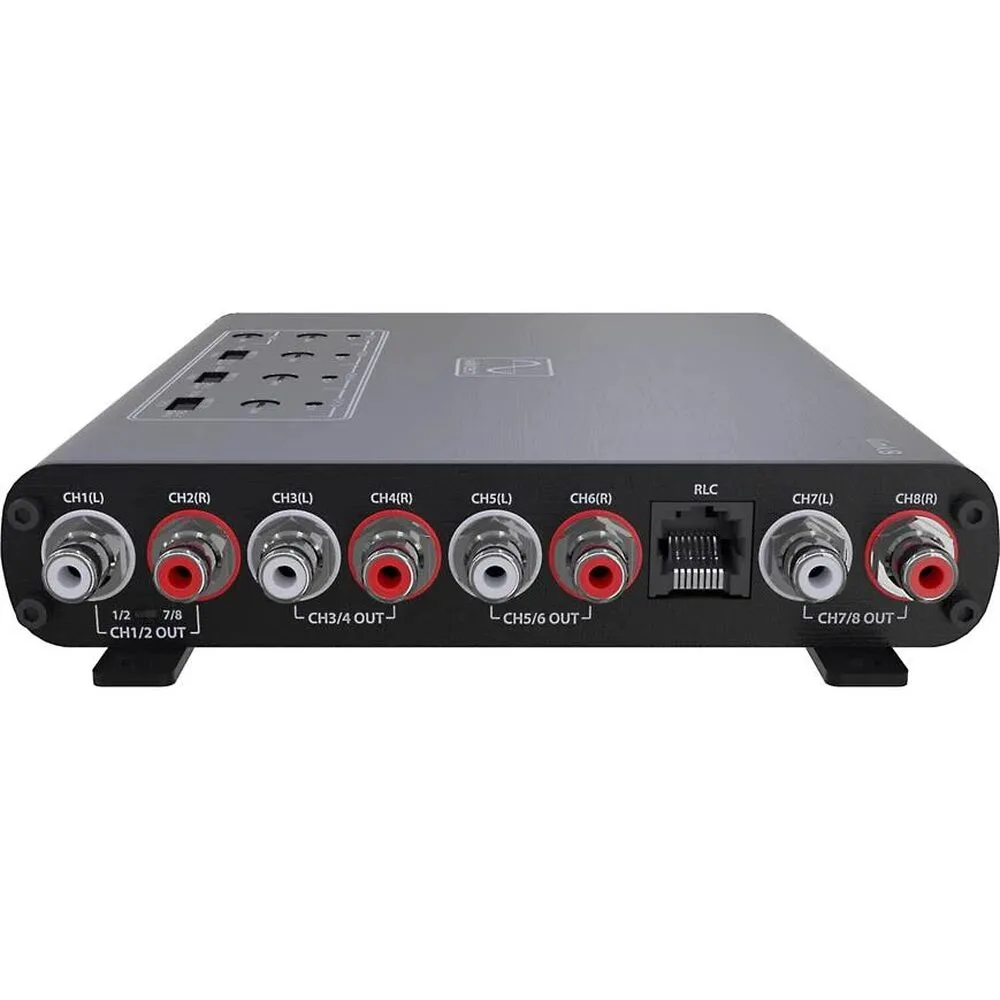

  • RCA line outputs for channels 1-8
  • Remote input and 12V remote turn-on output

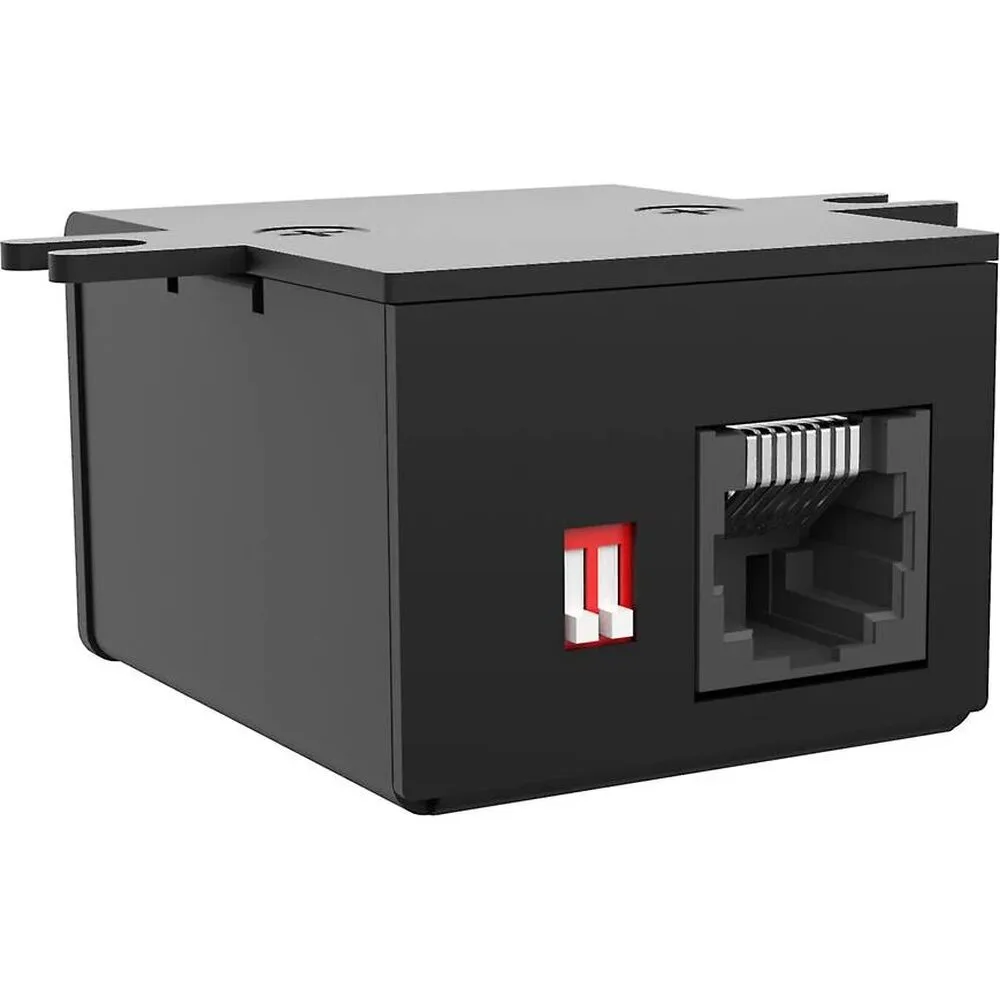

  • RJ-45 connection for included wired remote
  • Removable Phoenix-style terminal blocks
  • 8-channel active line output converter
  • 8-in / 8-out summing processor
  • Designed for factory multi-channel audio systems
  • Selectable 2, 4, 6, or 8-channel input configuration
  • 2-, 3-, or 4-way signal summing
  • Up to 10Vrms output per channel
  • Independent gain controls with clip indicators
  • Included wired multi-function remote with 16.4-foot cable
  • Requires professional installation
  • Use suitable power and ground wiring as recommended
  • Protect the 12V power wire with a 1-amp fuse
  • Do not expose the unit to moisture or direct heat
  • Confirm factory audio system compatibility before installation
  • Universal fitment for compatible factory audio systems

Note: Compatibility depends on the vehicle’s factory amplifier, speaker-level output, load-sensing requirements, and installation configuration.
