Phoenix Gold ZDSB200S and ZDBMW4CS – BMW Speaker Bundle

Phoenix Gold ZDSB200S 8-inch subwoofer and ZDBMW4CS 4-inch component speakers

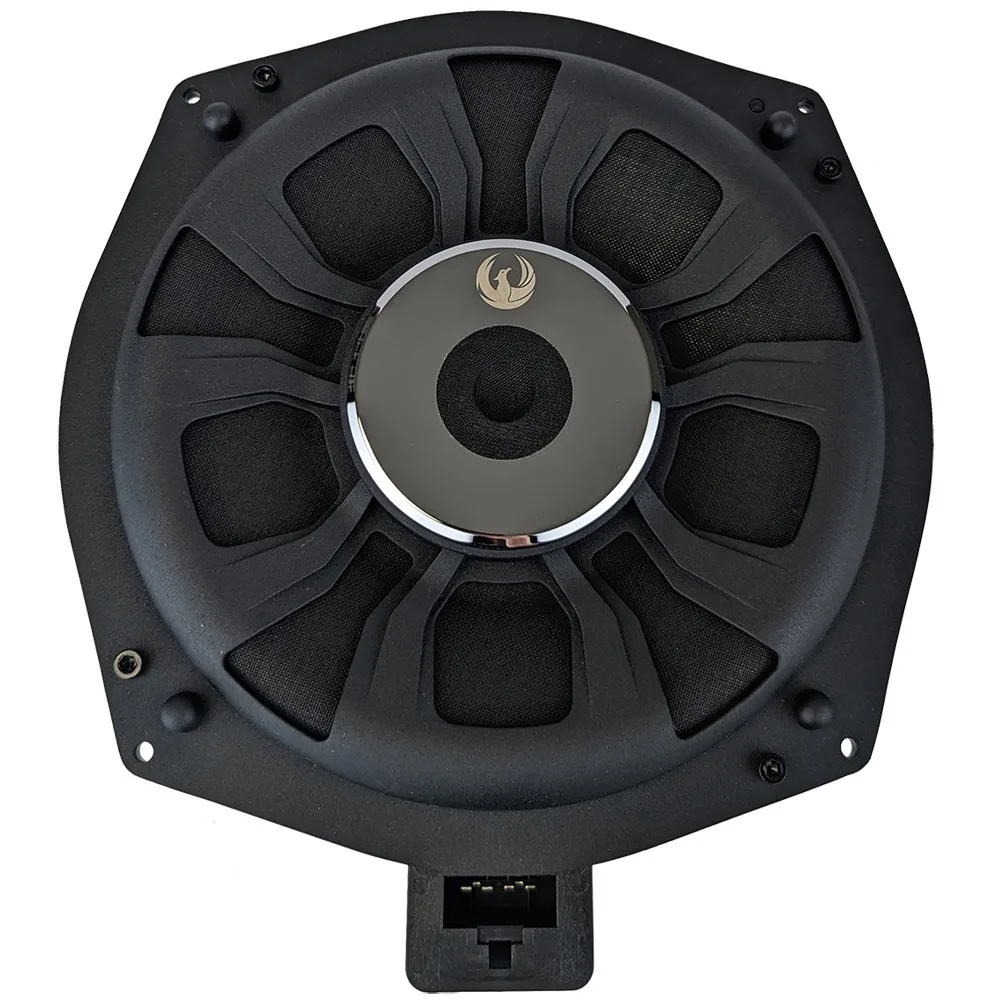

Phoenix Gold ZDSB200S 8-inch BMW subwoofer, front view

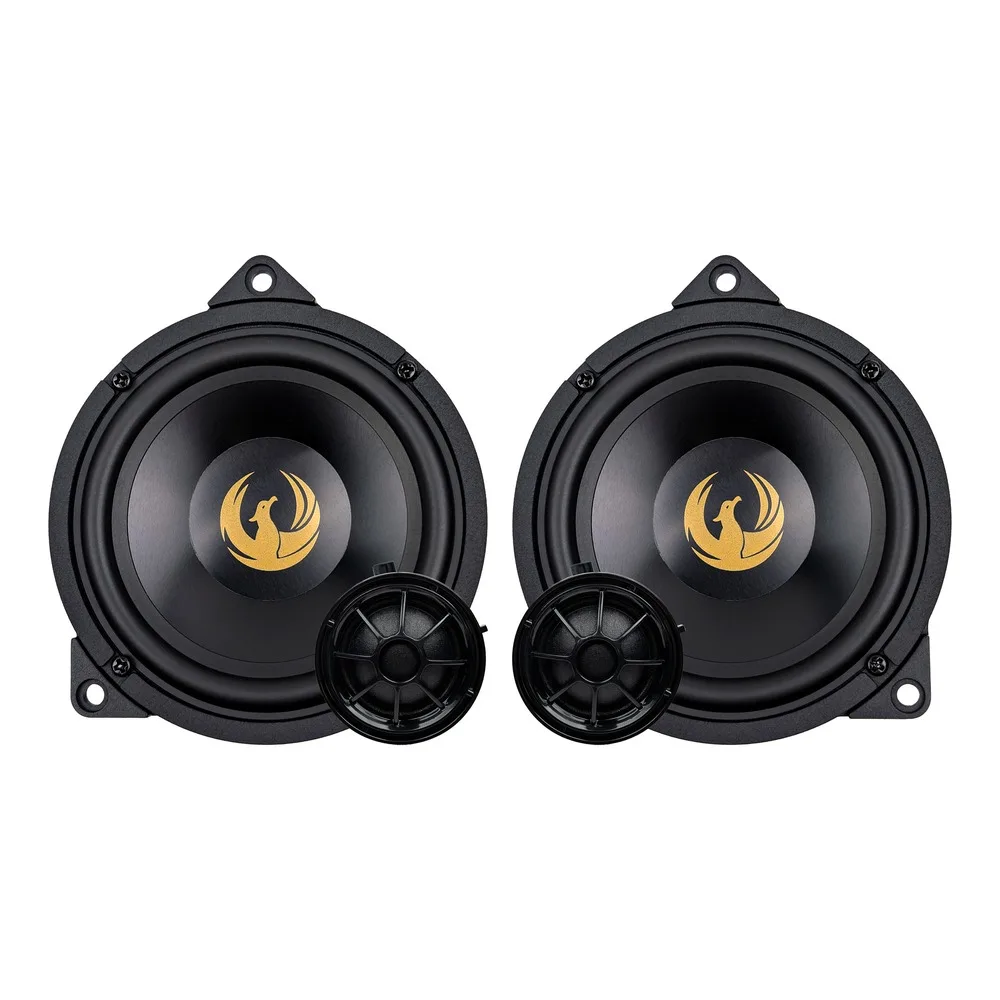

Phoenix Gold ZDBMW4CS 4-inch component speakers and tweeters
BMW
Mini

Phoenix Gold ZDSB200S and ZDBMW4CS – BMW Speaker Bundle

R8,299.00

Bundle of an 8-inch plug-and-play underseat subwoofer and a 4-inch 2-way component speaker set for listed BMW and Mini models, replacing the original subwoofer and door speakers.

Phoenix Gold ZDSB200S 8-inch BMW subwoofer, front view

Phoenix Gold ZDSB200S – 8-inch BMW and Mini Subwoofer

8-inch plug-and-play subwoofer that replaces the original subwoofer in listed BMW and Mini models, rated at 75 W RMS and 150 W maximum with 3.6 Ω impedance.

Phoenix Gold ZDBMW4CS BMW speaker upgrade kit component speakers

Phoenix Gold ZDBMW4CS BMW Speaker Upgrade Kit 120W

Vehicle-specific 2-way component speaker kit with 4-inch aluminium midrange drivers, silk dome tweeters and crossover network for direct factory-speaker replacement in compatible BMW vehicles.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

Request a quote for Installation
SKU ZDSB200S-ZDBMW4CS Category Brand:

Suitable for: , , , , , , , ,

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

8-inch subwoofer and 4-inch component speaker bundle for BMW and Mini

This bundle combines the ZDSB200S 8-inch subwoofer and the ZDBMW4CS 4-inch 2-way component speaker set. Both are plug-and-play units that replace the original speakers in the BMW and Mini models listed by the manufacturer. In listed vehicles with HiFi and Harman Kardon sound systems, the subwoofer fits under the front seats.

In BMWs with the factory Basic Sound System, the underseat woofers and door speakers share the same signal. The speaker set’s built-in bass blocker filters out frequencies below 120 Hz (-12 dB/oct), so bass is left to the underseat subwoofer while the door speakers handle the midrange and treble.

200 mmSubwoofer size
100 mmMidrange size
75 WSubwoofer RMS power
60 WSpeaker RMS power

Technical specifications

Product codeZDSB200S-ZDBMW4CS
TypeSubwoofer and component speaker bundle
Subwoofer modelZDSB200S
Subwoofer size8-inch (200 mm)
Subwoofer power handling75 W RMS, 150 W maximum
Subwoofer frequency response37 Hz – 3,000 Hz
Subwoofer impedance3.6 Ω
Subwoofer voice coil2-inch (50 mm)
Speaker modelZDBMW4CS
Speaker type2-way component set, sold as pairs
Midrange size4-inch (100 mm)
Tweeter1-inch silk dome
Speaker power handling60 W RMS, 120 W maximum
Speaker frequency response120 Hz – 20 kHz
Speaker impedance4 Ω
Speaker sensitivity86.0 dB (1 W/1 m)
Crossover frequency3,300 Hz (12 dB/oct)
Bass blockerFilters below 120 Hz (-12 dB/oct)

Combines an 8-inch subwoofer with a 4-inch 2-way component speaker set.

Both units are plug-and-play replacements for the original speakers.

Built-in bass blocker keeps frequencies below 120 Hz from the door speakers.

Aluminium-cone 4-inch midrange drivers with 1-inch silk dome tweeters.

Dual aluminium brackets fit either of the two BMW OEM bracket types.

Subwoofer uses a neodymium magnet, 2-inch voice coil and sandwich composite cone.

Connectivity & integration

Both units are plug and play and replace the original speakers. In the manufacturer installation guide, the subwoofer is connected to the original speaker connector. The component set includes 2 crossovers with a built-in bass blocker that filters out frequencies below 120 Hz (-12 dB/oct).

In BMWs with the factory Basic Sound System, the underseat woofers and door speakers share the same signal, so the bass blocker keeps low frequencies away from the door speakers.

Professional installation recommended.
Follow manufacturer installation guidelines.

Vehicle compatibility

Listed fitment by model, body style and year:

BMW 1-Series
  • 2007 – 2011 (E81) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2007 – 2011 (E87) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2007 – 2013 (E82): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2007 – 2013 (E88): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2011 – 2015 (F21): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2017 (F20) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2017 (F21) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2019 (F20) (2nd Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2019 (F21) (2nd Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 2-Series
  • 2014 – 2017 (F22): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 – 2017 (F23): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2021 (F22) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2021 (F23) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2020 – 2024 (F44): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 2-Series Active Tourer
  • 2014 – 2018 (F45): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2018 – 2021 (F45) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 2-Series Gran Tourer
  • 2015 – 2018 (F46): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2018 – 2021 (F46) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 3-Series
  • 2005 – 2008 (E90): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2005 – 2008 (E91): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2006 – 2010 (E92): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2007 – 2010 (E93): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2009 – 2011 (E90) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2009 – 2011 (E91) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2011 – 2013 (E92) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2011 – 2013 (E93) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2012 – 2015 (F30): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2012 – 2015 (F31): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2013 – 2015 (F34): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2019 (F30) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2019 (F31) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2020 (F34) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2022 (G20): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2022 (G21): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2022 – (G20) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2022 – (G21) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 4-Series
  • 2014 – 2017 (F32): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 – 2017 (F33): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 – 2017 (F36): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 2017 (F82): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 2017 (F83): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2019 (F32) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2019 (F33) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2020 (F36) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 2020 (F82) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 2020 (F83) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2020 (G22): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 5-Series
  • 2010 – 2013 (F10): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2010 – 2013 (F11): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2010 – 2013 (F18): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2013 – 2017 (F10) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2013 – 2017 (F11) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 – 2017 (F18) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2020 (G30): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2020 (G31): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2020 (G38): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2021 – 2023 (G30) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2021 – 2023 (G31) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2021 – 2023 (G38) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 6-Series
  • 2003 – 2007 (E63): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2004 – 2007 (E64): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2007 – 2010 (E63) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2007 – 2010 (E64) (Facelift): speakers Front Doors + Sidepanel Rear; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2011 – 2015 (F12): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2011 – 2015 (F13): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2012 – 2015 (F06): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2018 (F12) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2018 (F13) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2019 (F06) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2020 (G32): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW 7-Series
  • 2015 – 2019 (G11): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2015 – 2019 (G12): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2022 (G11) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2022 (G12) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW X1
  • 2009 – 2013 (E84): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2013 – 2016 (E84) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2016 – 2019 (F48): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2016 – 2019 (F49): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2022 (F48) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2022 (F49) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW X2
  • 2018 – (F39): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW X3
  • 2010 – 2014 (F25): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2014 – 2017 (F25) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2017 – 2019 (G01): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW X4
  • 2018 – 2019 (G02): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2021 (G02) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2022 (G02) (2nd Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW Z4
  • 2018 – 2022 (G29): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
BMW i8
  • 2014 – 2018 (I12): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2018 – 2020 (I12) (Facelift): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2018 – 2020 (I15): speakers Front Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
Mini Clubman
  • 2016 – 2019 (F54): speakers Front + Rear Doors; subwoofer Basic and Harman Kardon Sound System (674)
  • 2019 – 2021 (F54) (Facelift): speakers Front + Rear Doors; subwoofer Basic and Harman Kardon Sound System (674)
  • 2021 – (F54) (2nd Facelift): speakers Front + Rear Doors; subwoofer Basic and Harman Kardon Sound System (674)
Mini Cooper
  • 2013 – 2019 (III): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2019 – 2021 (III) (Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System
  • 2021 – 2024 (III) (2nd Facelift): speakers Front + Rear Doors; subwoofer Basic, HiFi and Harman Kardon Sound System

Vehicle names indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

What’s in the box

  • 1 × ZDSB200S 8-inch subwoofer kit (number of units per kit not published by manufacturer)
  • 1 × ZDBMW4CS component speaker set, containing:
  • 2 × 4-inch speakers
  • 2 × 1-inch tweeters
  • 2 × crossovers
  • 4 × BMW mounting brackets (2 of each)
  • 6 × speaker foam
  • 8 × screws
  • 1 × manual
