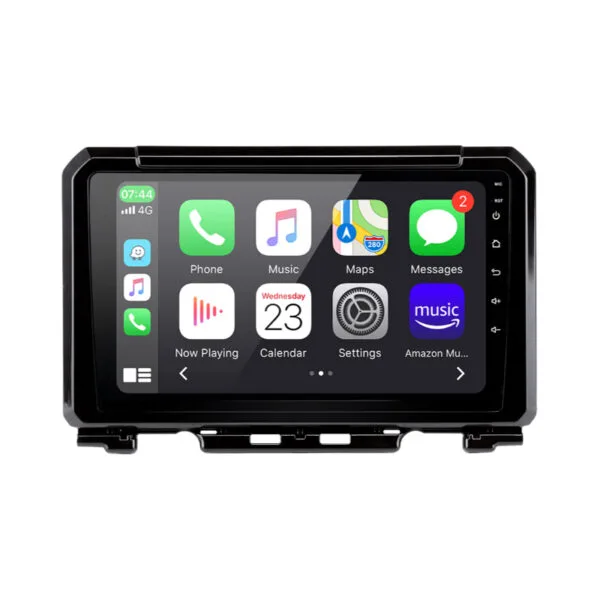

OneNav ON715-1A 9in Head Unit for Suzuki Jimny 2018+ OneConnect

OneNav ON715-1A 9in Head Unit for Suzuki Jimny 2018+ OneConnect

R11,895.00

User-friendly touchscreen with 3 USB inputs, OneConnect phone mirroring and control, full vehicle integration retaining steering wheel and sensor displays, advanced Bluetooth audio and offline navigation.

SKU ON715-1A Category Tag Brand:

The OneNav ON715-1A is a 9-inch in-car multimedia head unit built for Suzuki Jimny 2018 and later. Key hardware includes a Rockchip RK-PX6 CPU, Mali-T864 GPU, 4GB RAM, optional 64GB flash, 1280×720 capacitive touchscreen, Ublox6M GPS, RTL8188CTV WiFi, CSR Bluetooth with A2DP, NXP6686 radio with RDS, TDA7560 4x50W amplifier, 3 USB ports, 5.1 RCA outputs and A/V inputs, and support for 4K and common video and audio codecs.

Designed for direct integration with Jimny systems, the unit maintains original functions such as steering wheel controls, parking sensor and air conditioning displays. It supports OneConnect phone display and control, offline mapping, and optional accessories including TPMS, reverse camera, OBD and DVR; professional installation and vehicle-specific fascia may be required for full retained functionality.

  • CPU: Rockchip RK-PX6 Dual-core Cortex-A72 up to 1.8GHz and Quad Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864
  • Memory: 4GB RAM, optional 64GB flash
  • Display: 9 inch digital 16:9 1280×720 capacitive touchscreen (G+G, 5-point)
  • Radio: NXP6686 with RDS
  • GPS: Ublox6M
  • WiFi: RTL8188CTV
  • Bluetooth: CSR with contact copy support and A2DP
  • Amplifier: TDA7560 4x50W
  • A/V I/O: Video out 2 channel, Video in 1 channel, Audio out 2 channel, Audio in 1 channel
  • RCA: 5.1 channel output
  • USB: 3x ports
  • DSP: 15-band EQ
  • Video decoding: 4K H.265 H.264 MPEG4 XVID WMV VC-1 MPEG2 MP AVS RV RMVB Sorenson Spark VP8 up to specified bitrates
  • Audio decoding: MP3 WMA RA OGG WAV APE FLAC AC3 DTS
  • Picture formats: JPG BMP PNG TIFF JIF
  • Certifications: CE and RoHS compliant
  • Environment: Operation -20~70°C, Storage -40~85°C; Humidity operation 0~90% non-condensing
  • Optional: TPMS, reverse camera, OBD, digital video recorder
  • OneConnect phone mirroring and touchscreen control
  • Full retention of steering wheel controls, parking sensor and air con display
  • 3x USB ports for media and device charging
  • Advanced Bluetooth for hands-free calls and audio streaming
  • Offline maps support for navigation without mobile data
  • Built-in GPS, WiFi and support for optional cameras, TPMS and OBD
  • Built-in 4x50W amplifier and 15-band DSP EQ
  • Disconnect vehicle battery before installation to avoid short circuits.
  • Use professional installation for airbag, steering wheel control and parking sensor integration.
  • Avoid exposure to moisture and extreme heat during installation and operation.
  • Do not operate device controls while driving; follow local laws regarding screen use.
  • Suzuki Jimny 2018 and later
