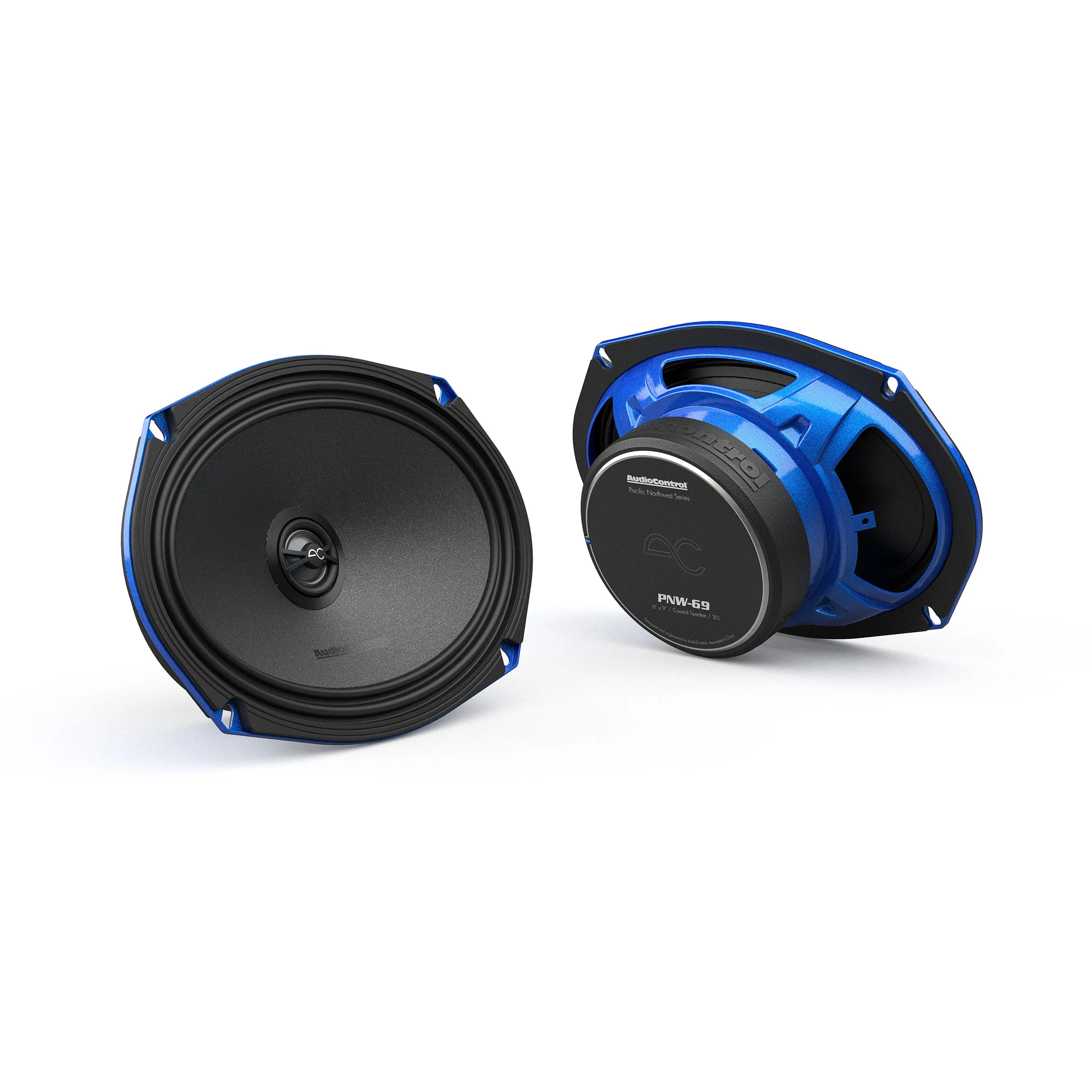

AudioControl PNW-69 6×9 Coaxial Speakers Efficient Motor

AudioControl PNW-69 6×9 Coaxial Speakers Efficient Motor

R4,185.00

AudioControl PNW-69 6×9 coaxial speakers deliver detailed sound with poly mica-coated cones, silk dome tweeters, black anodized voice coil formers, and included mounting hardware for easy installation.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU PNW-69 Category Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Frequently Purchased Together

No results found.

The AudioControl PNW-69 is a 6 x 9 inch coaxial car speaker engineered for accurate midrange and extended high-frequency response. The design includes an edge-enhanced steel frame, a rigid poly mica-coated cone, a black anodized voice coil former for improved heat dissipation, and a complex FEA-designed high-efficiency motor to improve output and control. The rear dampened hybrid silk dome tweeter and concentric point source design create a seamless transition between midrange and tweeter for coherent imaging.

Speakers include high-quality mounting hardware for straightforward installation. Key electrical and mechanical parameters include a Butterworth crossover, 5250 Hz crossover frequency, system response approximately 50-20k Hz, DC resistance 2.6 ohms, and a mounting depth of 75 mm. Cutout dimensions and overall sizes are provided for confirming fitment in 6×9 factory locations.

  • Crossover Type: Butterworth
  • Filter Type: High Pass
  • System Frequency Response (Fs): 50-20k Hz
  • XO Frequency: 5250 Hz
  • Slope: -6 dB
  • DC Resistance (Re): 2.6 ohms
  • Tweeter Voice Coil Diameter: 20 mm
  • Midrange Voice Coil Diameter: 35 mm
  • Overall Dimensions: 167 x 235 mm (6 x 9 in)
  • Overall Diameter without Metal Bracket: 183 x 265 mm (7.2 x 10.43 in)
  • Cut Out Diameter: 146 x 212 mm (5.74 x 8.34 in)
  • Mounting Depth: 75 mm (2.95 in)
  • Mounting Height without Grille: 6.3 mm
  • Mounting Height with Grille: 25 mm
  • Motor Diameter with Cover: 117 mm
  • Edge-enhanced steel frame for added structural strength
  • Black anodized voice coil former for superior heat dissipation
  • Linear double-roll surround for precise cone movement
  • Complex FEA-designed high-efficiency motor
  • Rigid poly mica-coated cone for optimized sound reproduction
  • Rear dampened hybrid silk dome tweeter for extended frequency response
  • Concentric point source design for seamless midrange to tweeter integration
  • Sonic diffuser and radiant collar for improved off-axis response
  • High-quality mounting hardware included
  • Disconnect the vehicle battery before installation to prevent short circuits
  • Verify correct polarity and secure mounting to avoid rattles or damage
  • Avoid placing hands or metal objects between cone and magnet during installation
  • Designed for vehicles with standard 6 x 9 inch speaker locations
  • Required cut out: 146 x 212 mm; mounting depth: 75 mm
  • May require vehicle-specific adapter or bracket for some factory locations
