The BMW Plug & Play 2-way high-efficiency system consists of two 100 mm woofers, two 25 mm soft dome tweeters, and two 6 dB/octave high-pass filters. Each woofer has a maximum power of 100 W (50 W nominal), with a frequency response of 80 Hz to 30 kHz, a sensitivity of 90.3 dB and an impedance of 2 Ω. The woofers are manufactured with a BLAM basket made of fiberglass reinforced composite, a BMW Plug & Play connector, a high-quality fiberglass cone, and a butyl surround. They also benefit from a 25 mm voice coil on Kapton support and a neodymium magnet for excellent performance. The kit also includes an operating manual.
Technical details

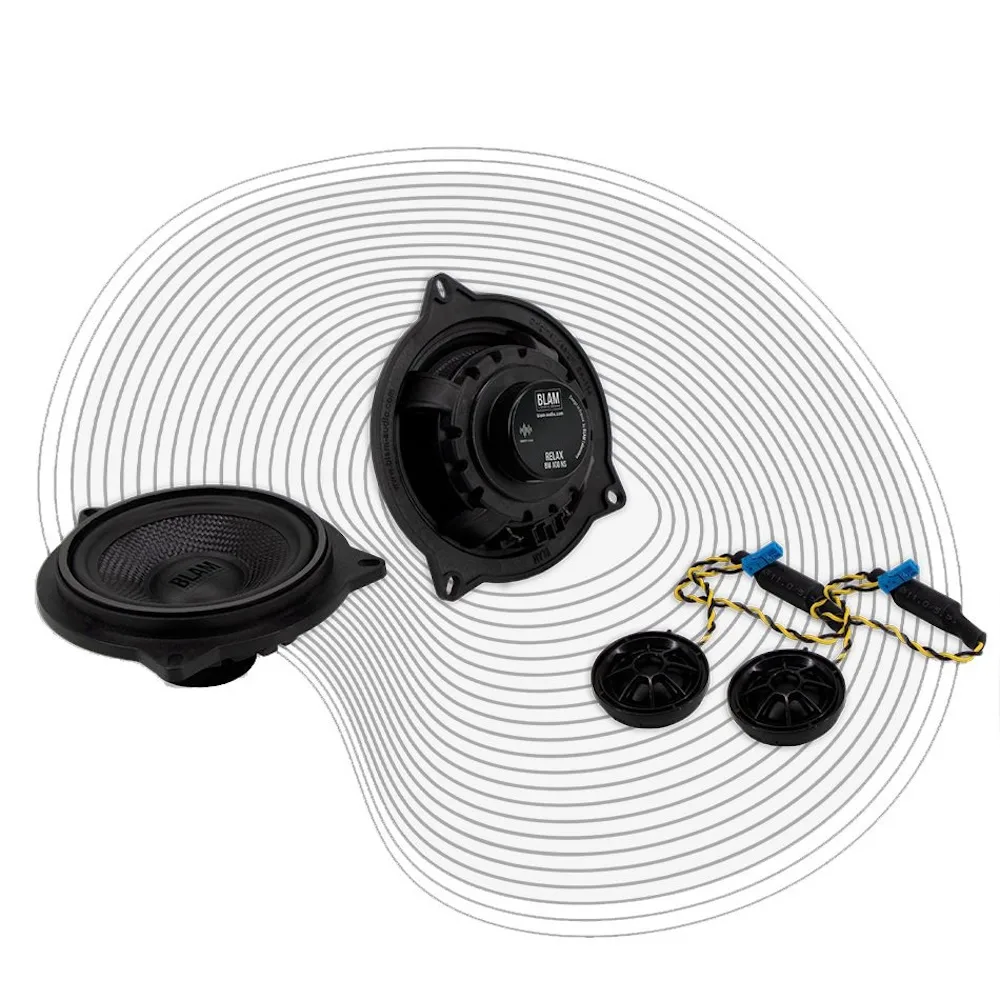

This kit includes two 100 mm BMW special plug & play woofers, two 25 mm soft-dome tweeters and two 6 dB/octave in-line high-pass filters.
100 mm woofer
Max. power 100 W / 50 W nominal
Frequency response 80 Hz / 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω
Composition
Woofer :

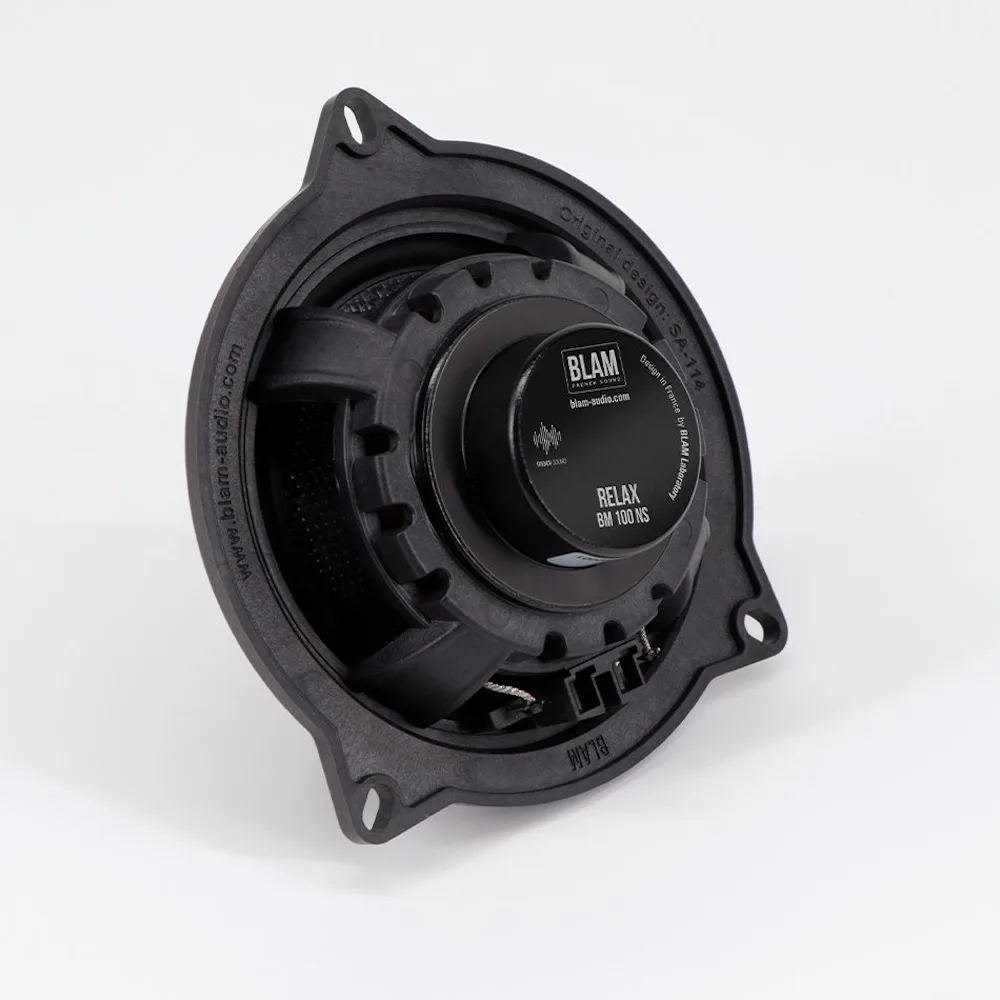

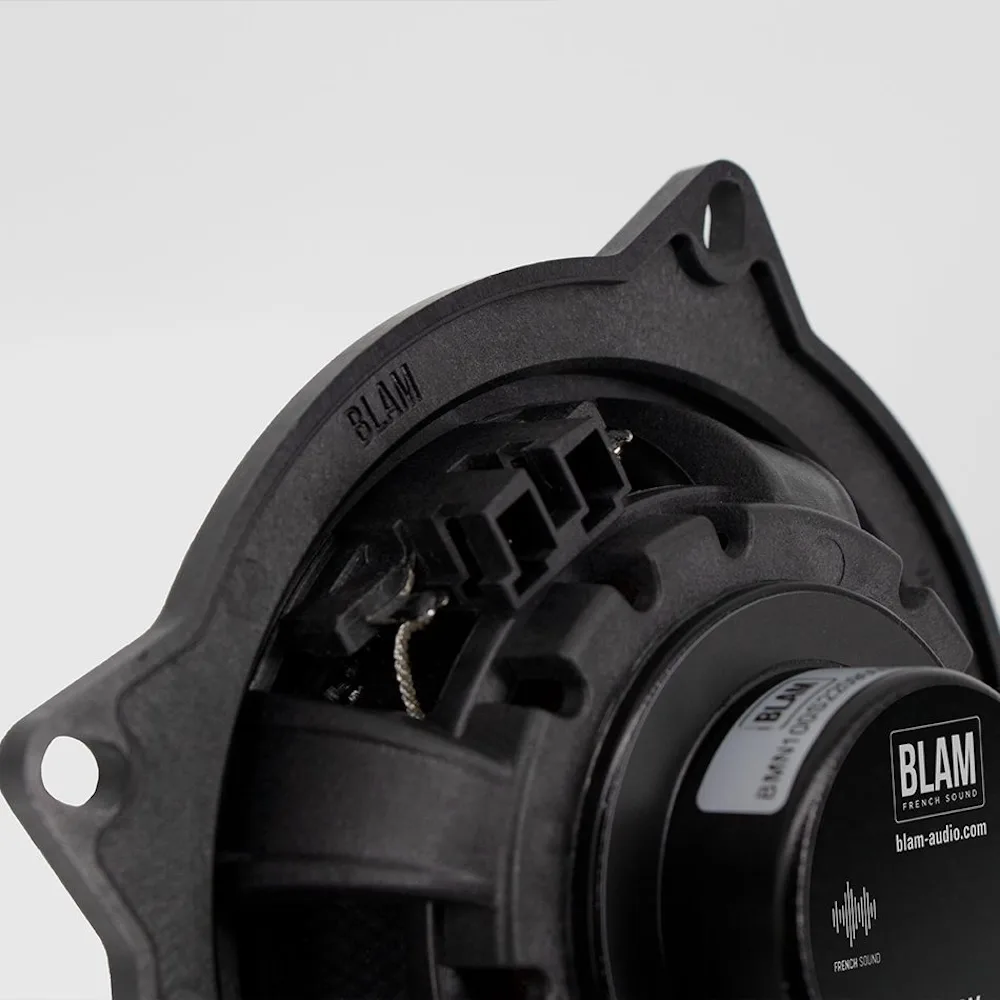

Original BLAM fiberglass-reinforced composite faceplate with dual BMW Plug & Play connectors

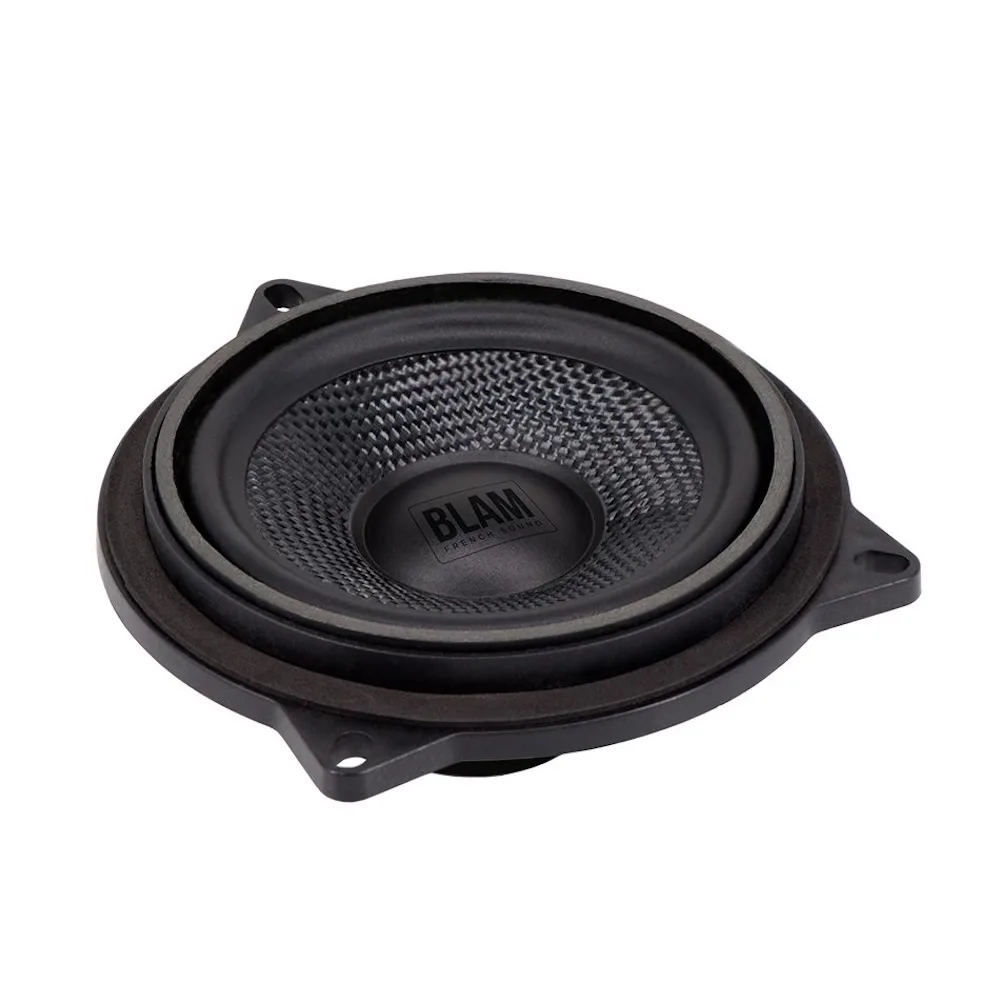

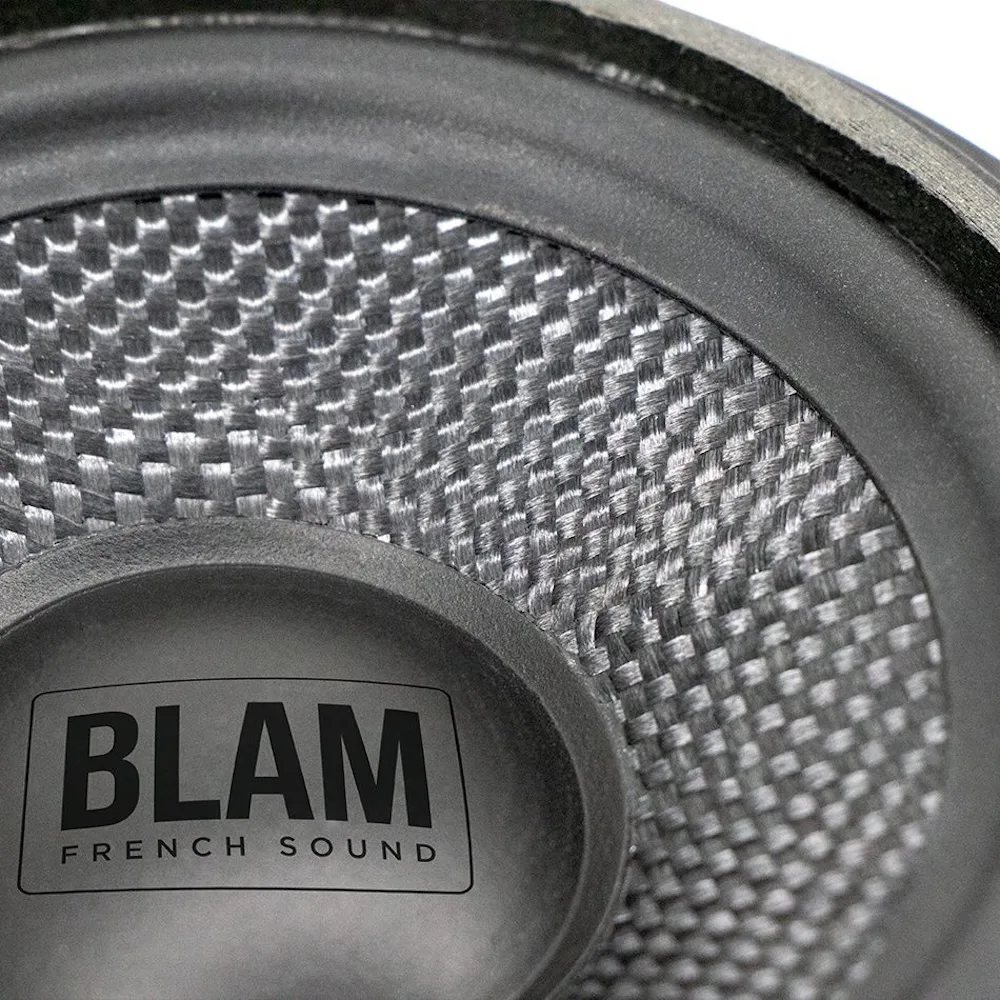

High-quality fiberglass diaphragm
Butyl perimeter suspension
Long-life ”Conex” spider
25 mm coil on Kapton holder
24.5 x 6 mm neodymium magnet
Thick magnetic circuit (4 mm)
