Audiotec Fischer CONDUCTOR DSP Remote Control – RGB Encoder

Audiotec Fischer CONDUCTOR DSP Remote Control – RGB Encoder

R2,849.00

One-knob remote for Audiotec Fischer DSPs providing volume, source, and preset control with RGB feedback, flush-mount design, and a 5 m Smart Control Port cable for easy installation.

SKU H424479 Category Tag Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

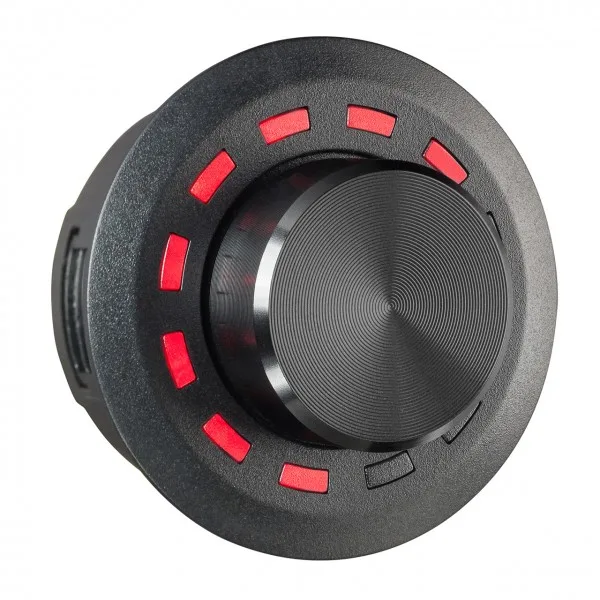

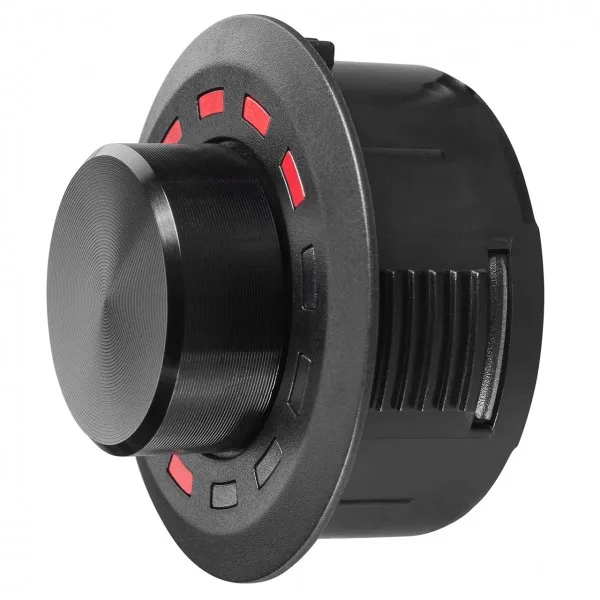

The CONDUCTOR is a one-touch remote control for Audiotec Fischer DSPs that centralizes volume adjustment, source selection, and sound setup switching into a single rotary encoder with 12 RGB LEDs and a machined aluminum knob. The unit uses an ABS housing and an internal 48 MHz ARM processor and connects via a NanoFit single-connector supply.

The CONDUCTOR installs flush with a diameter 40 mm cut-out and 17 mm installation depth and includes a 5 m cable harness split into a 4.8 m connection cable plus a 0.2 m CONDUCTOR cable. It supports up to four configurable volume menus, selection of sound setup slots, optional Bluetooth playback control when used with the compatible Bluetooth Extension Card, and full configuration via the DSP PC-Tool software.

  • Dimensions: Ø 46 x 28.7 mm (Ø 1.81 x 1.13 inches)
  • Installation depth: 17 mm (0.67 inches)
  • Mounting: Flush mount, diameter 40 mm hole cut-out
  • Cable length: 5.00 m total (4.8 m connection cable + 0.2 m CONDUCTOR cable)
  • Housing: ABS with machined aluminum knob
  • Hardware: Rotary encoder, 12 x RGB-LEDs, 48 MHz ARM processor
  • Connection: NanoFit single connector supply
  • Volume range options: 60 dB, 24 dB, 12 dB
  • Volume step resolution: 1 dB or 0.5 dB selectable
  • Configurable menus: Up to 4 individual volume menus
  • Sound setups: Selection among 10 memory slots
  • Configuration: Full configuration and firmware updates via DSP PC-Tool
  • One-knob control for volume, source selection, and sound setup switching
  • Up to 4 configurable volume menus (Master, Digital, HEC/AUX, Subwoofer, Rear Attenuation)
  • Selectable volume ranges: 60 dB, 24 dB, 12 dB and selectable steps: 1 dB or 0.5 dB
  • 12 RGB-LEDs with over 16 million colors, configurable brightness and automatic dimming
  • Sound Setup selection across 10 memory slots
  • Intuitive Bluetooth playback control and pairing activation with optional Bluetooth Extension Card
  • Flush mount installation, diameter 40 mm cut-out, 17 mm installation depth
  • 5 m cable harness with split connector and NanoFit single connector supply
  • Disconnect the vehicle battery before beginning installation
  • Confirm compatibility with your DSP model and any extension cards before connecting
  • Avoid exposure to moisture and extreme heat during installation and operation
  • Use correct mounting cut-out and secure cabling to prevent strain on the connector
  • BRAX DSP devices
  • HELIX DSP ULTRA S
  • MATCH UP 10DSP
