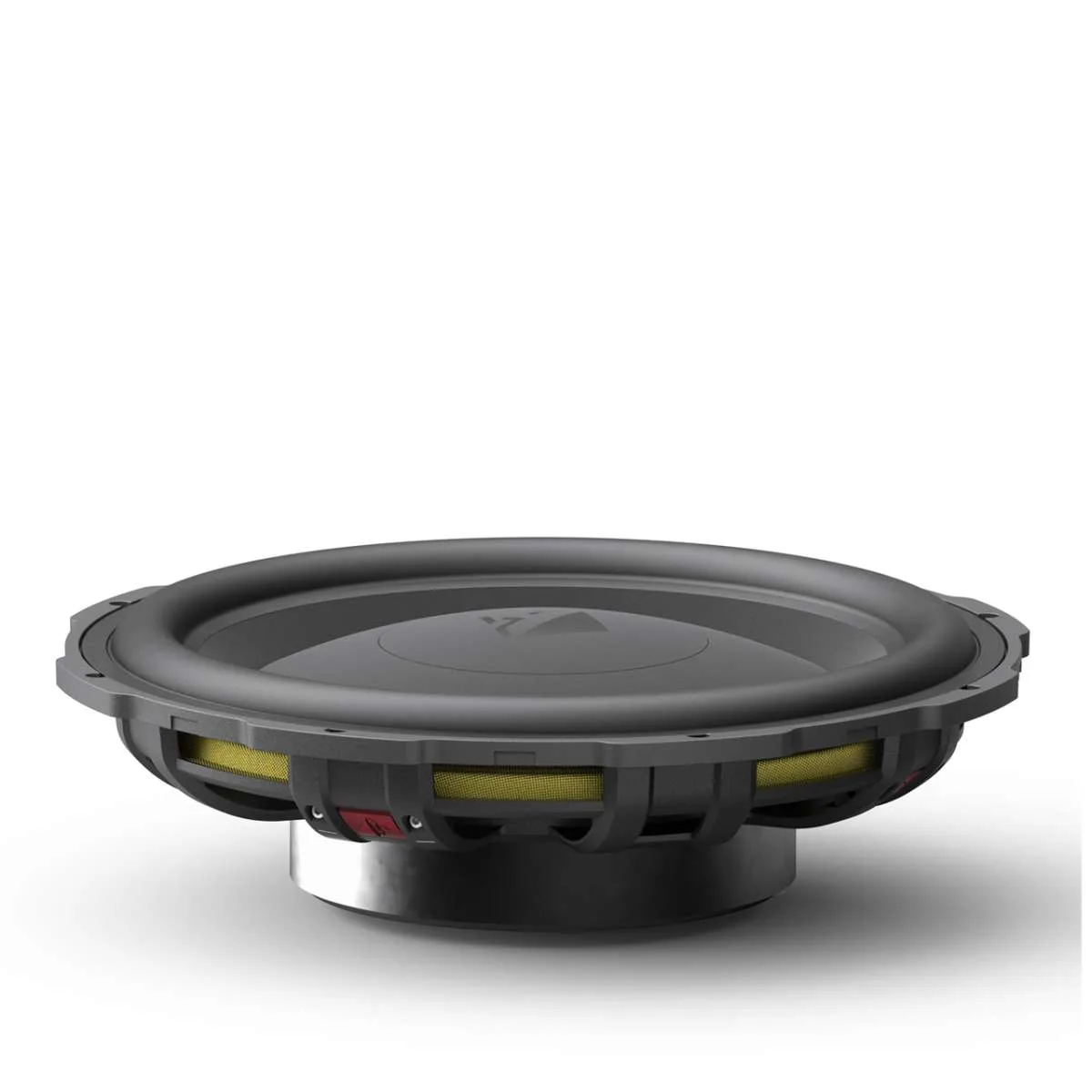

HELIX Ci5 S200FM-S2 200mm Hybrid Subwoofer Under-Seat

HELIX Ci5 S200FM-S2 200mm Hybrid Subwoofer Under-Seat

R7,149.00

HELIX Ci5 S200FM-S2 is a 200mm hybrid mid-woofer and subwoofer engineered for under-seat and bulkhead fitments with 47mm mounting depth, FlexMount200 adapters, and high excursion performance.

SKU CI21804 Category Tag Brand:

No results found.

The HELIX Ci5 S200FM-S2 is a 200 mm hybrid mid-woofer and subwoofer from the COMPOSE series designed to combine universal speaker flexibility with vehicle-specific integration. It uses a lightweight polypropylene cone, a high-tech polymer composite basket reinforced with glass spheres, and a powerful magnet system to deliver high efficiency, low distortion and controlled low-frequency output.

Built for tight installation spaces, the Ci5 S200FM features a 47 mm mounting depth, FlexMount200 adapter compatibility, and available S2 or D2 voice coil configurations for 1 x 2 Ohms or 2 x 2 Ohms setups. The speaker covers a frequency range of 25 to 500 Hz and offers high linear excursion for under-seat and bulkhead installations in many vehicles while matching impedance behavior with HELIX and MATCH amplifiers.

  • Model: Ci5 S200FM-S2
  • Type: 200 mm hybrid mid-woofer and subwoofer
  • Impedance: 1 x 2 Ohms single voice coil (S2)
  • Frequency range: 25 to 500 Hz
  • Linear excursion: +/- 7.8 mm (D2 variant +/- 7.5 mm)
  • Installation depth: 47 mm
  • Cone material: lightweight polypropylene
  • Basket material: high-tech polymer composite reinforced with glass spheres
  • Mounting system: FlexMount200 compatible
  • Voice coil configurations: available as S2 (1 x 2 Ohms) or D2 (2 x 2 Ohms)
  • Designed impedance matching: optimized for HELIX and MATCH amplifiers
  • Box contents: 2 x Ci5 S200FM-S2, 2 x mounting material
  • SKU: CI21804
  • Brand: HELIX
  • Exceptional cone excursion for high sound pressure and controlled low-frequency output
  • Hybrid flat woofer concept covers 25 to 500 Hz
  • Chassis available as 1 x 2 Ohms single voice coil (S2) or 2 x 2 Ohms (D2)
  • Minimum installation depth of 47 mm for tight spaces
  • Compact outer diameter with typical 200 mm cone area
  • Lightweight polypropylene cone for stiffness and sound performance
  • High-tech polymer composite basket reinforced with glass beads for rigidity and low resonance
  • Powerful magnet system for high efficiency and impulse response
  • FlexMount200 technology for vehicle-specific, acoustically optimized integration
  • Ensure amplifier impedance matches speaker configuration before use
  • Observe correct polarity when wiring
  • Do not exceed amplifier power ratings to avoid damage
  • Professional installation recommended for under-seat and OEM locations
  • Designed for under-seat applications in various BMW models
  • Suitable for front bulkhead installation in Mercedes vehicles
  • FlexMount200 adapter rings enable acoustically optimized integration in original vehicle positions
