OneNav ON509-1A 10.1in Head Unit for GWM Steed 5E RK-PX6

OneNav ON509-1A 10.1in Head Unit for GWM Steed 5E RK-PX6

R11,895.00

User-friendly 10.1 inch touch interface with 3 USB inputs, OneConnect phone mirroring, full integration of original vehicle functions, advanced Bluetooth audio and offline maps for navigation.

SKU ON509-1A Category Tag Brand:

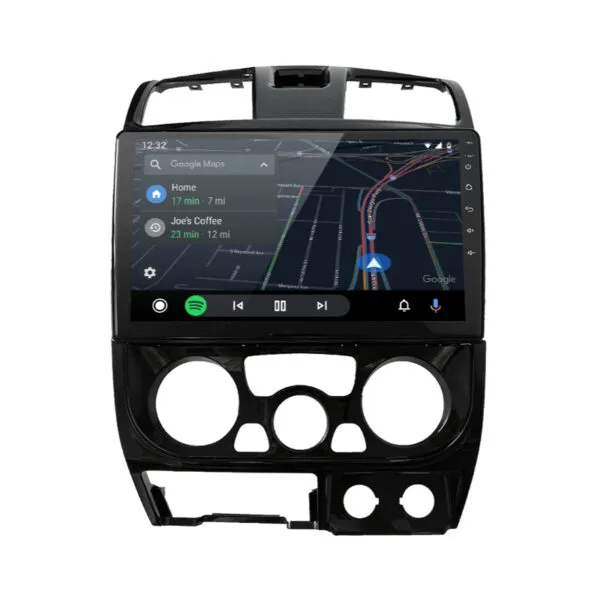

The OneNav Pro ON509-1A is a 10.1 inch replacement Android head unit specifically designed for GWM Steed 5E models from 2018 onwards. It retains original vehicle functions including steering wheel controls, parking sensor display and air conditioning display while adding touchscreen media, navigation and connectivity.

Hardware includes a Rockchip RK-PX6 CPU with dual-core Cortex-A72 and quad-core Cortex-A53 plus Mali-T864 GPU, 4GB RAM and optional 64GB flash. The capacitive 10.1in 1280×720 touchscreen supports 5-point touch; connectivity features include 3x USB, WiFi RTL8188CTV, Bluetooth CSR with A2DP and OneConnect phone mirroring. Audio and video capabilities include TDA7560 4x50W amplifier, 15-band DSP, 4K video decoding and support for common audio and image formats. Optional TPMS, reverse camera, OBD and DVR interfaces are supported. CE and RoHS compliant.

  • CPU: Rockchip RK-PX6 Dual-core Cortex-A72 up to 1.8GHz; Quad-core Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864
  • Memory: 4GB RAM; Flash 64GB optional
  • Display: 10.1in capacitive touchscreen 1280×720 resolution; 16:9 aspect ratio; 5-point touch
  • Radio: NXP6686 with RDS support
  • GPS: Ublox6M
  • Amplifier: TDA7560 4x50W
  • A/V I/O: Video out 2 channel; Video in 1 channel; Audio out 2 channel; Audio in 1 channel
  • RCA: 5.1 channel
  • USB: 3x USB ports
  • WiFi: RTL8188CTV
  • Bluetooth: CSR with contact copy support and A2DP audio
  • DSP: 15-band equaliser
  • Video Decoding: 4K support; H.265, H.264, MPEG4, XVID and others
  • Audio Formats: MP3, WMA, RA, OGG, WAV, APE, FLAC, AC3, DTS
  • Picture Formats: JPG, BMP, PNG, TIFF, JIF
  • Optional Modules: TPMS, reverse camera, OBD, DVR
  • Certifications: CE and RoHS compliant
  • Environment: Operating temperature -20 to 70C; Storage -40 to 85C; Humidity operation 0 to 90% non-condensing
  • 10.1in capacitive touchscreen with 1280×720 resolution
  • Rockchip RK-PX6 processor with Mali-T864 GPU and 4GB RAM
  • Full vehicle integration retaining steering wheel controls, parking sensor and AC displays
  • Three USB inputs and OneConnect phone mirroring
  • Offline maps support and Ublox6M GPS
  • Advanced Bluetooth with A2DP and contact copy function
  • Built-in 4x50W amplifier and 15-band DSP
  • Professional installation recommended to ensure correct wiring and fitment
  • Disconnect vehicle battery before beginning installation to prevent short circuits
  • Use appropriate mounting and grounding to avoid electrical noise or damage
  • Verify camera, TPMS and OBD connections before finalising installation
  • GWM Steed 5E (2018 and later) OEM fitment
