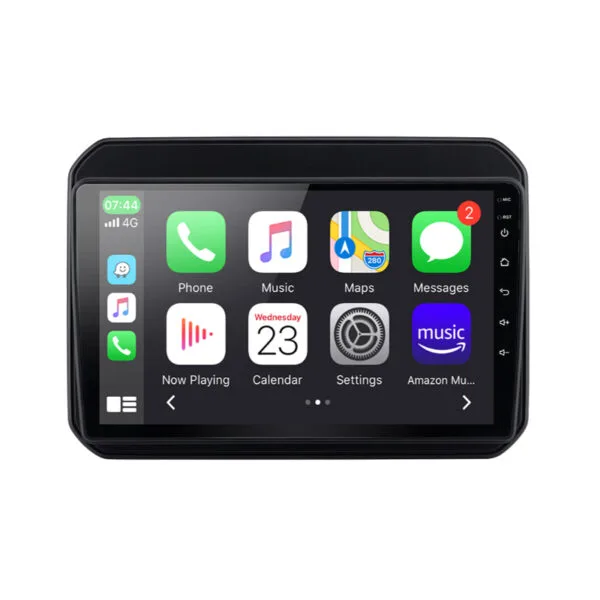

OneNav ON712-1A 9in Pro Head Unit for Suzuki Ignis GPS


OneNav ON712-1A 9in Pro Head Unit for Suzuki Ignis GPS

R11,895.00

User-friendly 9in interface with OneConnect phone mirroring, 3 USB inputs, retains steering wheel and vehicle displays, advanced Bluetooth audio and calls, and offline GPS maps.

Request a quote for Installation
SKU ON712-1A Category Tag Brand:

The OneNav ON712-1A is a 9in Android aftermarket head unit built around a Rockchip RK-PX6 CPU with Mali-T864 GPU, 4GB RAM and optional 64GB flash. It features a 1280×720 capacitive 5-point touch screen, NXP6686 radio with RDS, Ublox6M GPS and a TDA7560 4x50W power amplifier.

Designed for Suzuki Ignis models from 2018 onwards, the unit provides OneConnect phone mirroring, advanced Bluetooth for music and calls, 3x USB ports, WiFi RTL8188CTV, 15-band DSP, multiple AV inputs/outputs and support for optional reverse camera, TPMS, OBD and DVR accessories. Supports common audio and video codecs and is CE and RoHS compliant.

  • CPU: Rockchip RK-PX6 Dual-core Cortex-A72 up to 1.8GHz + Quad Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864
  • Memory: RAM 4GB, Flash 64GB optional
  • Display: 9in (also fits 10.1in variant), 1280 x 720 resolution, 16:9
  • Touch: Capacitive G+G, 5-point touch
  • Radio: NXP6686 with RDS support
  • GPS: Ublox6M
  • Amplifier: TDA7560 4x50W
  • A/V I/O: Video out 2-channel, Video in 1-channel, Audio out 2-channel, Audio in 1-channel
  • RCA: 5.1 channel
  • USB: 3x USB ports
  • WiFi: RTL8188CTV
  • Bluetooth: CSR with contact copy support and A2P for audio
  • DSP: 15-band equalizer
  • Optional modules: TPMS, Reverse camera, OBD, Digital Video Recorder
  • Video decoding: 4K, H.265, H.264, MPEG4/XVID, WMV/VC-1, MPEG2, VP8 up to specified bitrates
  • Audio formats: MP3, WMA, RA, OGG, WAV, APE, FLAC, AC3, DTS
  • Picture formats: JPG, BMP, PNG, TIFF, JIF
  • Certifications: CE and RoHS compliant
  • Operating temperature: -20 to 70 C, Storage temperature: -40 to 85 C, Humidity: 0 to 90% non-condensing
  • OneConnect phone mirroring and control from the touchscreen
  • Full integration retains steering wheel controls, parking sensor and aircon displays
  • 3x USB inputs for media and device charging
  • Advanced Bluetooth for calls and audio streaming
  • Offline GPS maps support for navigation without mobile data
  • 15-band DSP and TDA7560 4x50W amplifier for improved audio tuning
  • Optional reverse camera, TPMS, OBD and DVR support
  • Disconnect the negative battery terminal before installation
  • Professional installation recommended to preserve vehicle functions and airbags
  • Use the correct wiring harness and CANbus adapter for retained features
  • Verify parking sensor, steering wheel control and aircon display operation after install
  • Suzuki Ignis (2018+)
  • Check vehicle year and trim for dash opening and wiring harness compatibility prior to purchase
