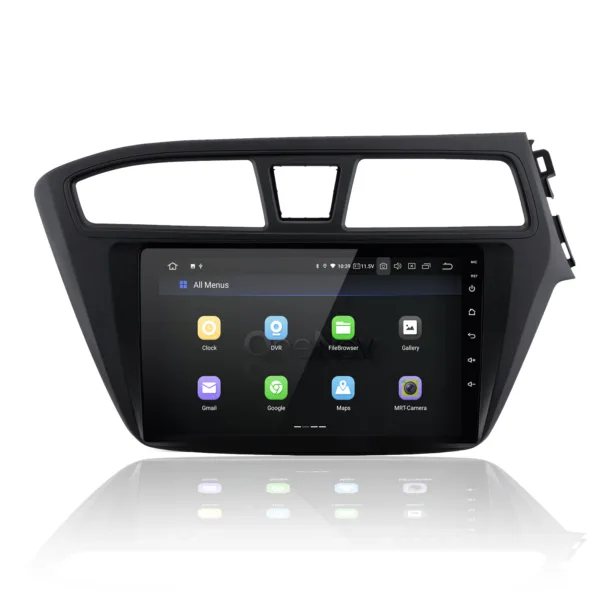

OneNav Pro 9in Head Unit for Hyundai i20 with 3 USB

OneNav Pro 9in Head Unit for Hyundai i20 with 3 USB

R11,895.00

User-friendly capacitive 9in interface with 3x USB ports, OneConnect phone display, retains steering wheel and vehicle displays, advanced Bluetooth audio, offline GPS maps and 15-band DSP.

SKU ON198-2A Category Tag Brand:

The OneNav Pro 9in is an aftermarket Android-based head unit designed for Hyundai i-20 A10 (2018-2019). It provides a 9in capacitive touchscreen, OneConnect phone display and retains original vehicle functions including steering wheel controls, parking sensor display and aircon display.

Hardware includes a Rockchip RK-PX6 CPU, Mali-T864 GPU, 4GB RAM and optional 64GB flash. Connectivity and features include 3x USB ports, WiFi, CSR Bluetooth with phonebook copy and A2DP, Ublox6M GPS with offline maps, 4x50W power amplifier, 15-band DSP, multiple A/V inputs and RCA outputs, and support for optional TPMS, reverse camera, OBD and DVR modules.

  • CPU: Rockchip RK-PX6 Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864
  • Memory: 4GB RAM, optional 64GB flash storage
  • Display: 9in capacitive touch panel, 16:9, 1280×720 resolution, 5-point touch
  • Radio: NXP6686 with RDS support
  • GPS: Ublox6M with offline maps
  • Power amplifier: TDA7560 4x50W
  • A/V I O: Video out 2 channel, Video in 1 channel, Audio out 2 channel, Audio in 1 channel
  • RCA: 5.1 channel output
  • USB: 3x USB ports
  • WiFi: RTL8188CTV
  • Bluetooth: CSR module, phonebook copy support, A2DP
  • DSP: 15-band equalizer
  • Video decoding: 4K support, H.265 H.264 MPEG4 XVID WMV VC-1 MPEG2 VP8 and others
  • Audio decoding: MP3 WMA RA OGG WAV APE FLAC AC3 DTS
  • Picture formats: JPG BMP PNG TIFF GIF
  • Certifications: CE and RoHS compliant
  • Environment: Operating temperature -20 to 70 C; storage -40 to 85 C; operating humidity 0 to 90% non-condensing
  • Optional features: TPMS, reverse camera, OBD, digital video recorder
  • 9in capacitive touchscreen with 1280×720 resolution
  • Rockchip RK-PX6 CPU with Mali-T864 GPU
  • 3x USB ports for media and device charging
  • OneConnect phone display and touchscreen control
  • Retains steering wheel controls, parking sensor and aircon displays
  • Advanced CSR Bluetooth with phonebook copy and A2DP
  • Offline GPS navigation with Ublox6M
  • 15-band DSP and built-in 4x50W amplifier
  • Professional installation recommended to preserve vehicle functions and safety systems
  • Disconnect vehicle battery before beginning installation to avoid electrical damage
  • Avoid exposing the unit to moisture and operate within specified temperature and humidity ranges
  • Hyundai i-20 A10 2018-2019
