Phoenix Gold ZLOC4.4 4-Channel Line Output Converter 7.5V

R1,999.00

Active 4-channel line-output converter that converts OEM speaker-level outputs to low-level RCA signals with a noise-free path, adjustable gain and selectable ground isolation for amplifier integration.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

Request a quote for Installation
SKU ZLOC4.4 Categories , Brand:

Suitable for:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Frequently Purchased Together

No results found.

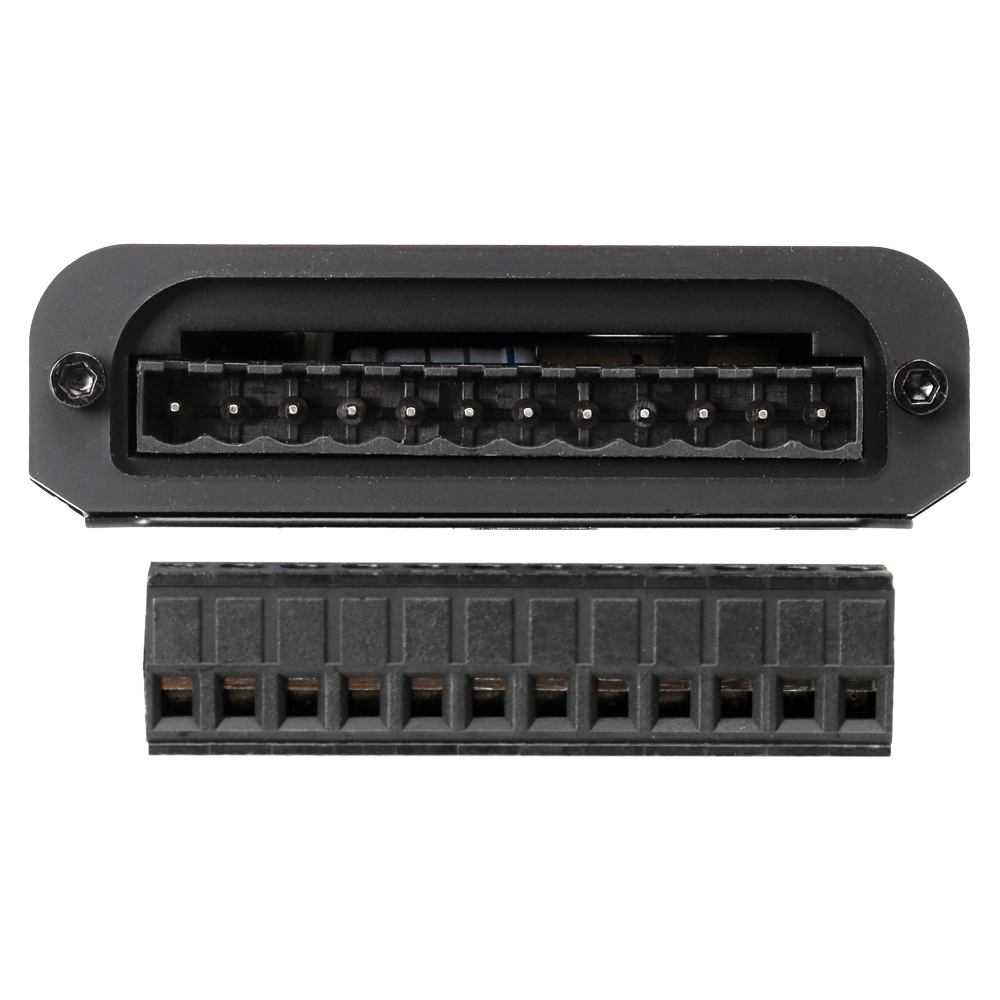

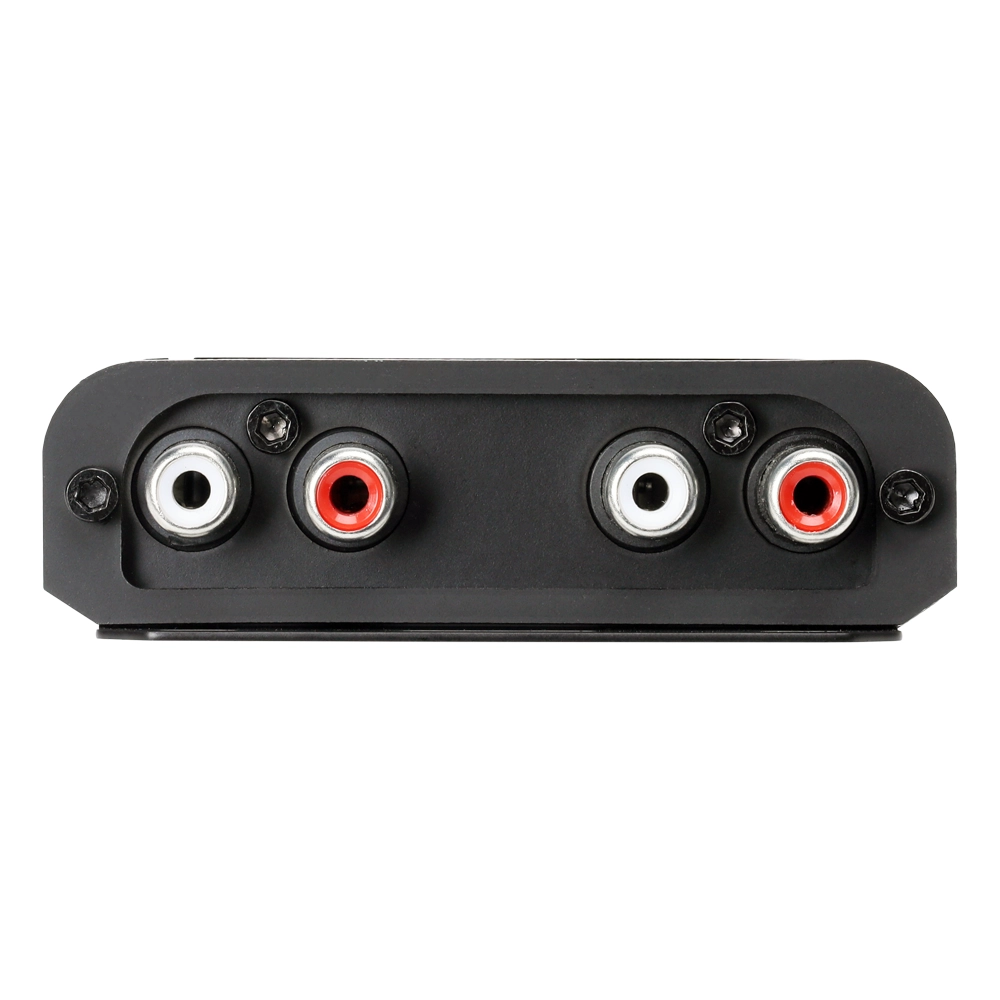

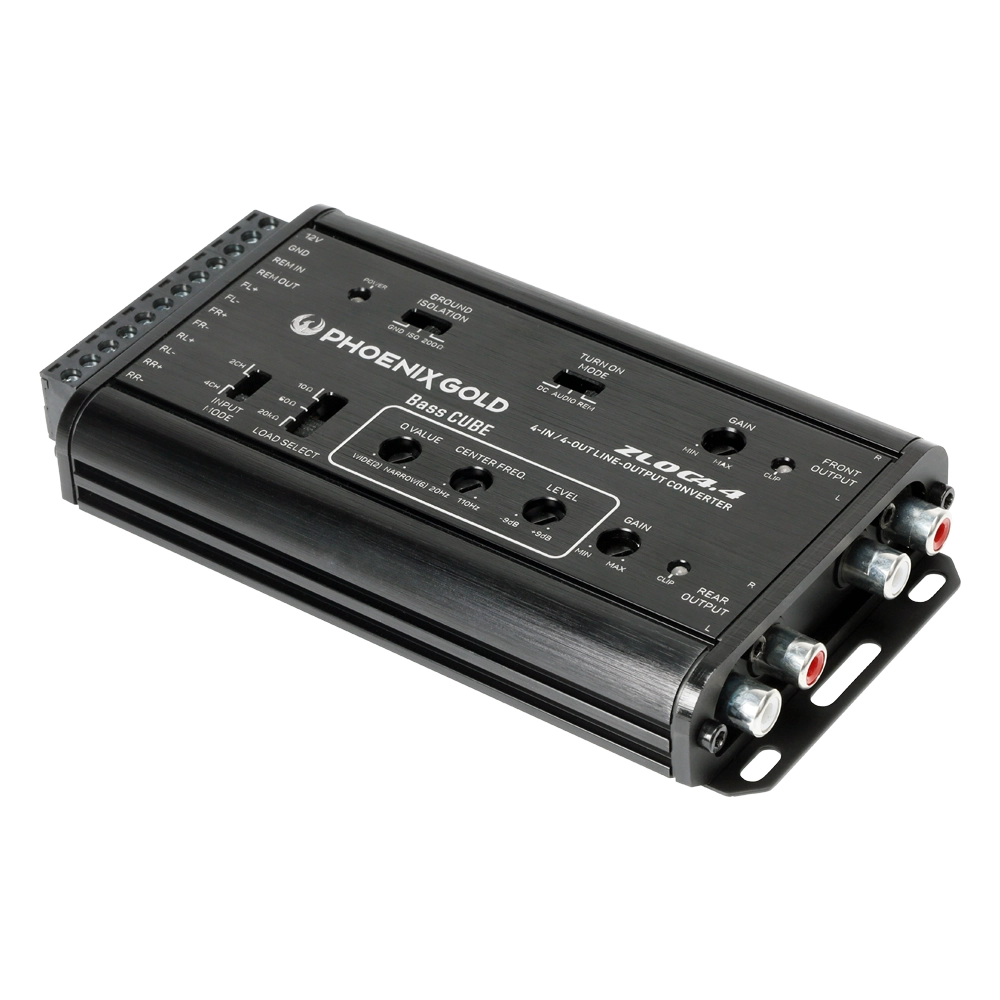

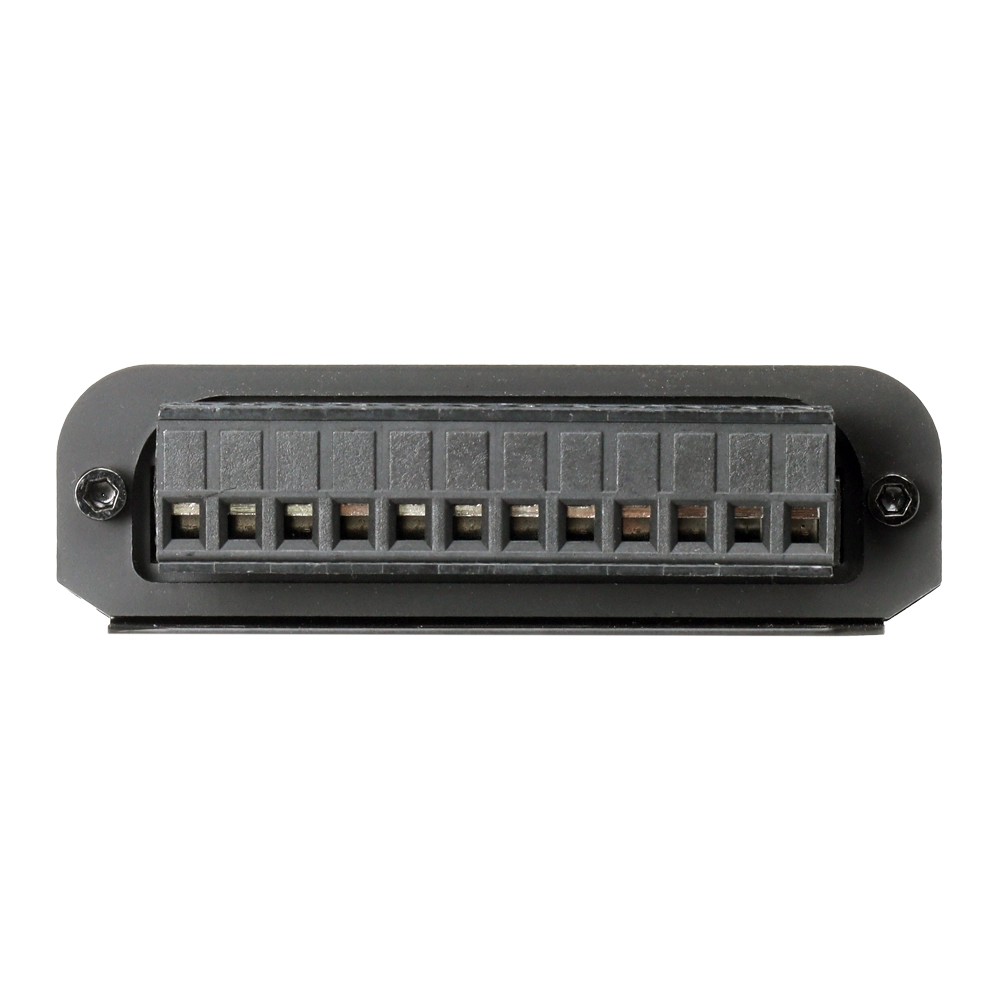

The Phoenix Gold ZLOC4.4 is a 4-in/4-out active line-output converter designed to integrate factory audio systems with aftermarket amplifiers by converting speaker-level signals to low-level RCA outputs. It features an aluminum chassis, adjustable gain, selectable ground isolation options (GND/ISO/200 Ohm), REM In/Out, a CLIP indicator for signal monitoring, and Bass CUBE equalisation with centre frequency 20-110 Hz and boost range -9 dB to +9 dB for subwoofer tuning.
  • Brand: Phoenix Gold
  • Model: ZLOC4.4
  • Channels: 4-in/4-out
  • Maximum RCA output: 7.5 V RMS
  • Gain: Adjustable
  • Ground isolation: Selectable GND / ISO / 200 Ohm
  • Bass CUBE equalisation: Centre frequency 20-110 Hz, boost -9 dB to +9 dB
  • Input modes: 4-channel or duplicated 2-channel
  • Remote: REM In/Out
  • Indicators: Built-in CLIP indicator
  • Chassis: Aluminum
  • SKU: ZLOC4.4
  • Active 4-in/4-out speaker-level to RCA conversion
  • 7.5 V RMS maximum RCA outputs for clean signal to amplifiers
  • Adjustable gain control
  • Selectable ground isolation: GND, ISO, 200 Ohm
  • REM In/Out for remote turn-on control
  • Built-in CLIP indicator for real-time signal monitoring
  • Bass CUBE EQ: 20-110 Hz centre frequency, -9 dB to +9 dB boost
  • Selectable 4-channel or duplicated 2-channel input mode
  • Durable aluminum chassis
  • Disconnect vehicle battery before installation to avoid short circuits
  • Ensure proper chassis ground to prevent noise and interference
  • Secure unit away from moisture and heat sources
  • Route signal and power cables separately to minimize noise
  • Use a qualified installer if unsure about wiring
  • Universal fit for vehicles with factory head units that provide speaker-level outputs
  • Works with 4-channel and 2-channel OEM outputs via duplicated input mode
