PJ-YX-ZY01 – ICAR V23 DSP Sound System Kit

R12,500.00

Sound system kit for the ICAR V23 with a 6-input, 8-output DSP rated at 8 × 51 W, a 7-inch passive seat subwoofer, and 1.5-inch and 3.5-inch speakers.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU PJ-YX-ZY01 Category Brand:

Suitable for:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Frequently Purchased Together

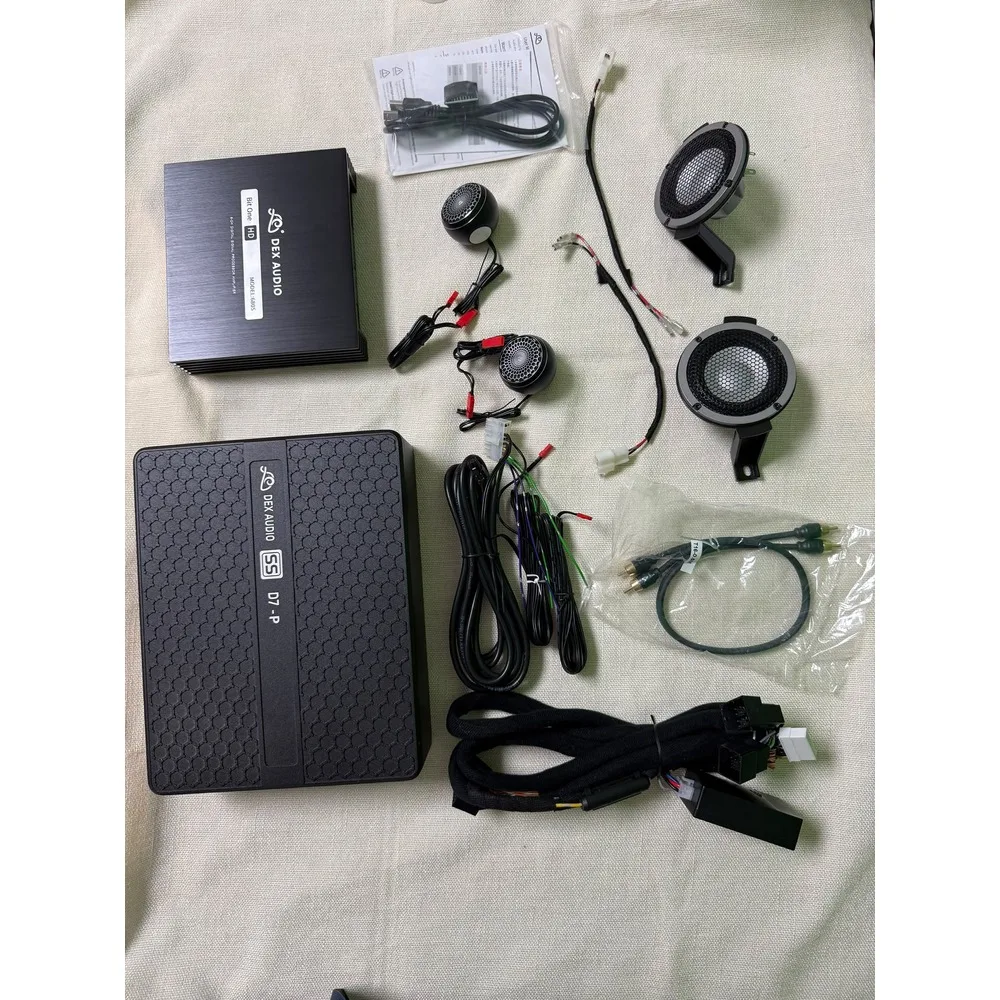

Dedicated sound system kit for the ICAR V23

This kit is listed for the ICAR V23 and combines a digital signal processor (DSP), a passive seat subwoofer, a 1.5-inch speaker type and a 3.5-inch speaker type. The DSP has 6 inputs and 8 outputs, 8 × 51 W output power and 31-band EQ tuning.

The DSP lists Bluetooth 5.4, MP3, FLAC and WAV audio encoding, and a 20 Hz to 36 kHz frequency range. The seat subwoofer uses a 7-inch dual voice coil speaker unit rated at 75 + 75 W, covering 50 Hz to 150 Hz. The DSP, subwoofer and both speaker types are listed in aluminium alloy.

8 × 51 WDSP output power
31-bandDSP EQ tuning
7-inchSeat subwoofer unit
5.4Bluetooth version

Technical specifications

Product codePJ-YX-ZY01
TypeDedicated car sound system kit
ApplicationICAR V23
DSP inputs and outputs6 inputs, 8 outputs
DSP output power8 × 51 W
DSP BluetoothBluetooth 5.4
DSP equaliser31-band EQ tuning
DSP audio encodingMP3, FLAC, WAV
DSP frequency range20 Hz – 36 kHz
DSP materialAluminium alloy
Subwoofer typePassive seat subwoofer
Subwoofer speaker unit7-inch dual voice coil
Subwoofer power75 + 75 W
Subwoofer frequency range50 Hz – 150 Hz
Subwoofer materialAluminium alloy
1.5-inch speaker power20–80 W
1.5-inch speaker unitWoven basin speaker unit
1.5-inch speaker frequency range250 Hz – 20 kHz
1.5-inch speaker sensitivity92 dB
1.5-inch speaker impedance4 Ω
1.5-inch speaker materialAluminium alloy
3.5-inch speaker power40 W
3.5-inch speaker unitSound bowl speaker unit
3.5-inch speaker frequency range200 Hz – 10 kHz
3.5-inch speaker sensitivity92 dB
3.5-inch speaker impedance4 Ω
3.5-inch speaker materialAluminium alloy

Six-input, eight-output DSP with 8 × 51 W output power.

The DSP is listed with Bluetooth 5.4 connectivity.

31-band EQ tuning on the DSP for adjusting the system sound.

Passive seat subwoofer with a 7-inch dual voice coil speaker unit.

1.5-inch speaker covers 250 Hz to 20 kHz at 92 dB sensitivity.

3.5-inch speaker covers 200 Hz to 10 kHz at 92 dB sensitivity.

DSP, subwoofer and speakers are listed in aluminium alloy.

Dedicated sound system kit listed for the ICAR V23.

Connectivity & integration

The kit’s DSP has 6 inputs and 8 outputs, supports Bluetooth 5.4 and lists MP3, FLAC and WAV audio encoding. Its stated output power is 8 × 51 W.

Connection details for the vehicle’s factory audio system and wiring are not published by the manufacturer.

Professional installation recommended.
Follow manufacturer installation guidelines.

Vehicle compatibility

Listed fitment by model, body style and year:

ICAR V23
  • All variants listed by the manufacturer.

Vehicle names indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

What’s in the box

Package contents not published by manufacturer.
