HELIX M ONE Monoblock Amp 1 Ohm Stable 600W RMS


HELIX M ONE Monoblock Amp 1 Ohm Stable 600W RMS

R6,799.00

Small, stable monoblock amplifier for subwoofers. Class D design provides 600W RMS at 1 Ohm, highlevel input with ADEP, integrated crossover, and bass remote control.

Request a quote for Installation
SKU HA11107 Category Tag Brand:

The HELIX M ONE is a compact monoblock Class D amplifier engineered for subwoofer applications. It delivers up to 600 Watts RMS at 1 Ohm and features a high-current output stage, SMD manufacturing and an illuminated logo for compact reliable operation.

Inputs include 2x RCA and 2x highlevel speaker inputs with ADEP and Auto Turn-On, plus remote and bass remote control. The amp has an active crossover with lowpass, bass boost, subsonic and phase controls, is Start-Stop capable for modern vehicle systems, and measures 50 x 230 x 154 mm for easy installation.

  • Output power RMS (<=1% THD+N): 1 x 240 Watts, 1 x 410 Watts, 1 x 600 Watts
  • Max output power per channel: Up to 720 Watts RMS @ 1 Ohm
  • Amplifier technology: Class D

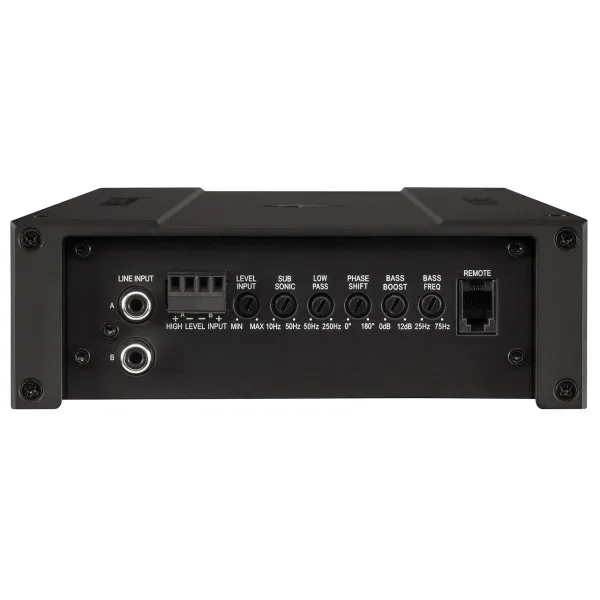

  • Inputs: 2 x RCA, 2 x Highlevel speaker input, 1 x Remote In, 1 x Remote control input
  • Input sensitivity: RCA 0.5 – 6 V, Highlevel 1.1 – 13 V
  • Input impedance: RCA 20 kOhms, Highlevel 13 Ohms
  • Frequency response: 10 Hz – 250 Hz
  • Lowpass: 50 Hz – 250 Hz adjustable
  • Subsonic: 10 Hz – 50 Hz adjustable
  • Bass boost: 0 – 12 dB @ 25 – 75 Hz
  • Phase: 0 – 180 degrees adjustable
  • Slope subsonic/lowpass: 12/24 dB/Oct
  • Signal-to-noise ratio analog input: 95 dB A-weighted
  • Distortion THD: 0.20 %
  • Damping factor: 100
  • Operating voltage: 10.5 – 16 Volts (max 5 sec down to 6 Volts)
  • Idle current: 650 mA

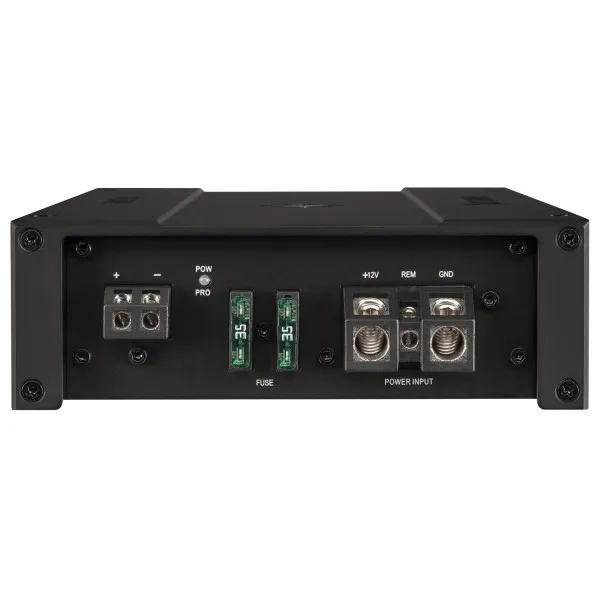

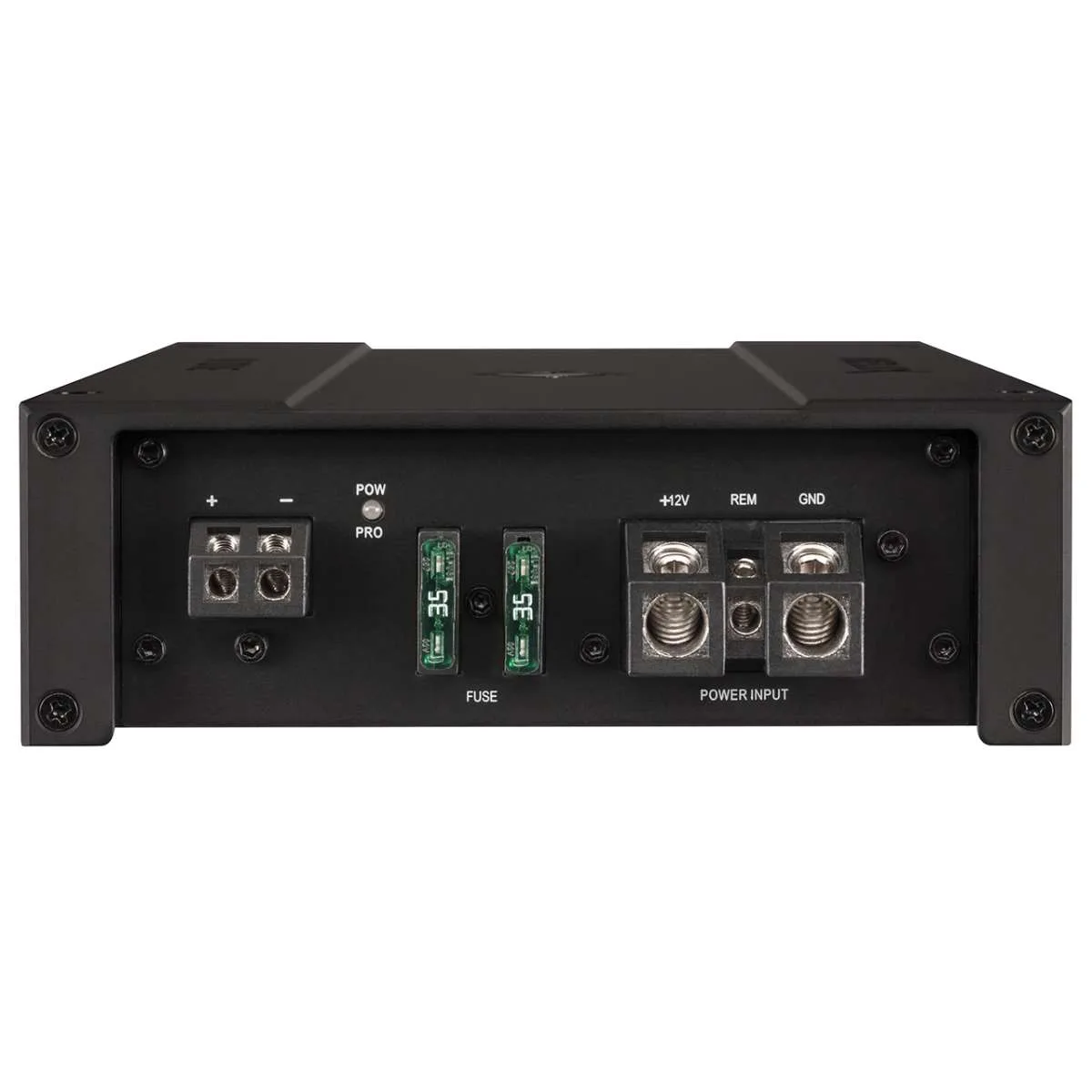

  • Fuse: 2 x 35 A Maxi-fuse (APX)
  • Dimensions H x W x D: 50 x 230 x 154 mm
  • Compact Class D monoblock design
  • Stable to 1 Ohm with high-current output stage
  • Start-Stop capable down to 6 V (max 5 seconds)
  • Smart highlevel input with ADEP and Auto Turn-On
  • Integrated active crossover: lowpass, bass boost, subsonic, phase control
  • Bass remote control included
  • SMD manufacturing for compact size and reliability
  • Illuminated HELIX logo and low heat dissipation
  • Disconnect vehicle battery before installation
  • Use the specified 2 x 35 A fuses or equivalent Maxi-fuse type
  • Allow ventilation and avoid mounting in fully enclosed spaces to prevent overheating
  • Follow the supplied instruction manual for wiring and setup
  • Fits 12V car audio systems
  • Compatible with vehicles equipped with Start-Stop systems
  • Designed for subwoofer installations including 2 x 2 Ohm dual voice coil subwoofers wired in parallel
