MATCH UP 1FX Monoblock Subwoofer Amp 1x900W Start-Stop

MATCH UP 1FX Monoblock Subwoofer Amp 1x900W Start-Stop

R6,599.00

Compact high-power monoblock amplifier MATCH UP 1FX provides up to 900 Watts RMS for 1 ohm, DirectDSP bypass, active crossover, and Start-Stop capability for modern vehicles.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU M110100 Category Tag Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Frequently Purchased Together

No results found.

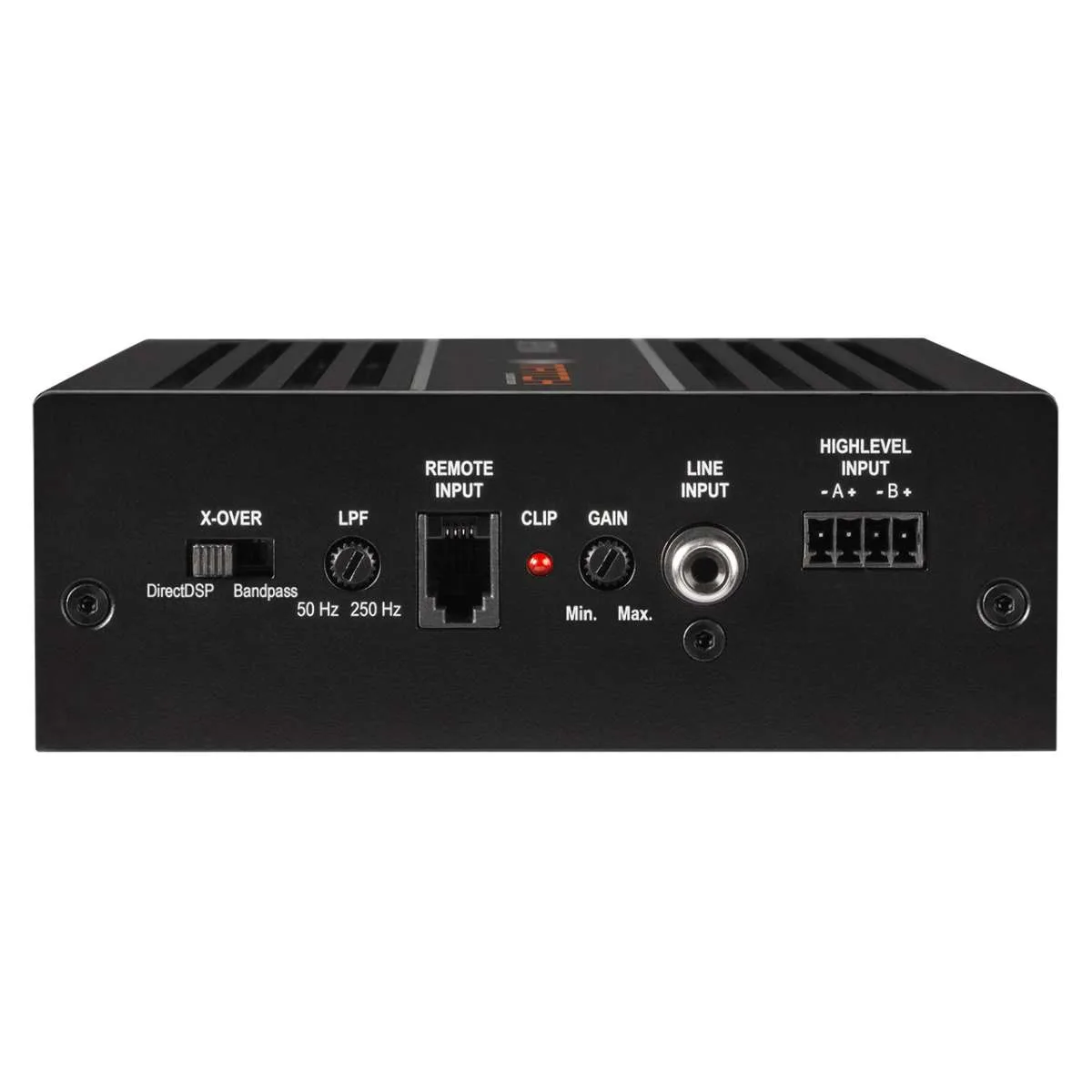

The MATCH UP 1FX is a compact Class D monoblock subwoofer amplifier designed for upgrading factory subwoofer systems and driving high-performance subwoofers. It delivers up to 1×900 Watts RMS with a maximum output up to 1000 Watts RMS at 1 ohm and pairs with MATCH and HELIX subwoofer chassis and enclosure subs.

Engineered for integration and flexibility, the UP 1FX features an integrated active crossover, high-power stereo highlevel input with ADEP.3 and signal summing, mono RCA input, and the DirectDSP function to bypass the crossover. The Start-Stop capable power supply and extended input voltage range up to 18 V enable use in modern vehicles. Its compact dimensions allow space-saving installations.

  • Amplifier type: Class D monoblock
  • Power RMS: 1 x 350 W, 1 x 600 W, 1 x 900 W
  • Max output power: Up to 1000 W RMS @ 1 Ohm
  • Inputs: 1 x RCA/Cinch, 2 x Highlevel speaker input, 1 x Remote In, 1 x Remote control input
  • Input sensitivity RCA/Cinch: 0.5 – 3 V or 1 – 6 V
  • Input sensitivity Highlevel: 2.5 – 16 V or 5 – 32 V
  • Input impedance RCA/Cinch: 8.6 kOhms; Highlevel: 9 – 33 Ohms
  • Frequency response: 10 Hz – 25,000 Hz
  • Lowpass: 50 Hz – 250 Hz adjustable (can be turned off)
  • Subsonic: 15 Hz (can be turned off)
  • Slope high-/lowpass: 12 dB
  • Signal-to-noise ratio analog input: 108 dB A-weighted
  • Distortion (THD): 0.002 %
  • Damping factor: 160
  • Operating voltage: 10.5 – 18 V (max. 5 sec down to 6 V)
  • Idle current: 1050 mA
  • Fuse: 2 x 30 A LP-Mini-fuse (APS)
  • Power rating: DC 12 V 80 A max
  • Ambient operating temperature range: -40 C to +70 C
  • Dimensions (H x W x D): 46 x 130 x 153 mm
  • What’s in the box: 1 x Amplifier MATCH UP 1FX; 1 x Mounting plates and material; 1 x Instruction manual
  • High-fidelity Class D monoblock with exceptional power-to-size ratio
  • Massive output up to 1×900 W RMS and up to 1000 W peak
  • Integrated adjustable active crossover for subwoofer integration
  • Highlevel stereo input with signal summing and ADEP.3 support
  • DirectDSP function to bypass internal crossover and route input unfiltered
  • Start-Stop capable power supply and extended input voltage up to 18 V
  • Clipping LED for easy gain adjustment and compact design for tight installations
  • Use the specified 2 x 30 A LP-Mini fuses as indicated
  • Observe operating voltage range 10.5 V to 18 V; short drops to 6 V allowed for up to 5 seconds
  • Disconnect the vehicle battery before installation and follow the included instruction manual
  • Ensure adequate ventilation and secure mounting to prevent overheating and vibration damage
  • 12 V vehicle electrical systems
  • Start-Stop systems and modern electric vehicles due to extended input voltage up to 18 V
  • Compatible with factory subwoofer upgrades and MATCH/HELIX subwoofer chassis
  • Compact installations where unit dimensions 46 x 130 x 153 mm are required
