OneNav Pro ON321-1A 9in Honda Civic Head Unit PX6


OneNav Pro ON321-1A 9in Honda Civic Head Unit PX6

R11,895.00

User-friendly interface with 3 USB inputs, OneConnect phone display and control, preserves original radio functions, advanced Bluetooth audio and calls, and offline maps for navigation.

Request a quote for Installation
SKU ON321-1A Category Tag Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

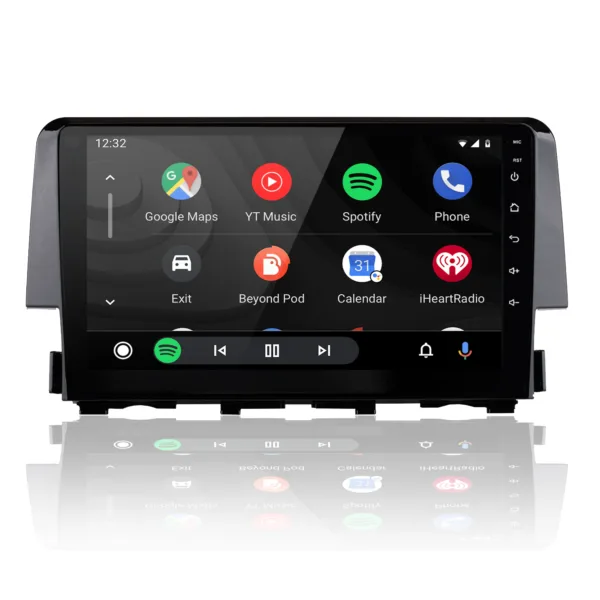

The OneNav Pro ON321-1A is a 9 inch aftermarket infotainment head unit designed for Honda Civic 2017 and later. It features a Rockchip RK-PX6 CPU, Mali-T864 GPU, 4GB RAM with optional 64GB flash storage, a 1280×720 16:9 capacitive 5-point touch display, NXP6686 radio with RDS and Ublox6M GPS.

Full integration maintains steering wheel controls, parking sensor and air conditioning displays. Connectivity includes 3 USB ports, WiFi RTL8188CTV, CSR Bluetooth with contact copy and A2P music playback, 2 video out/1 video in channels, 2 audio out/1 audio in, 5.1 RCA output, 15-band DSP, and support for optional TPMS, reverse camera, OBD and DVR. Supports common audio and video formats and is CE and RoHS compliant.

  • CPU: Rockchip RK-PX6 Dual-core Cortex-A72 up to 1.8GHz; Quad Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864
  • Memory: 4GB RAM; Flash optional 64GB
  • Display: 9″ digital LCD; Aspect Ratio 16:9; Resolution 1280×720
  • Touch Panel: Capacitive G+G 5-point touch
  • Radio: NXP6686 with RDS support
  • GPS: Ublox6M
  • Power Amplifier: TDA7560 4x50W
  • A/V I/O: Video out 2 channel; Video in 1 channel; Audio out 2 channel; Audio in 1 channel
  • RCA: 5.1 channel output
  • USB: 3x USB ports
  • WiFi: RTL8188CTV
  • Bluetooth: CSR with contact copy support and A2P music playback
  • DSP: 15-band equalizer
  • Optional: TPMS, Reverse camera, OBD, Digital Video Recorder
  • Video Decoding: 4K H265 H.264 MPEG4 XVID WMV VC-1 MPEG2 MP AVS RV RMVB VP8 VC1 H.263 up to specified bitrates
  • Audio Decoding: MP3 WMA RA OGG WAV APE FLAC AC3 DTS
  • Picture Formats: JPG BMP PNG TIFF JIF
  • Certifications: CE and RoHS compliant
  • Operating Temperature: -20 to 70°C; Storage Temperature: -40 to 85°C
  • Humidity: Operation 0 to 90% non-condensing; Storage 0 to 90% non-condensing
  • 9 inch 1280×720 capacitive touchscreen
  • Rockchip RK-PX6 processor with Mali-T864 GPU
  • 4GB RAM with optional 64GB flash storage
  • Full integration with steering wheel controls, parking sensor and AC display
  • Three USB ports and OneConnect phone display and control
  • CSR Bluetooth with contact copy and A2P music playback; WiFi support
  • TDA7560 4x50W internal amplifier and 15-band DSP
  • Optional TPMS, reverse camera, OBD and DVR support
  • Disconnect the vehicle battery before installation to avoid short circuits or electrical damage
  • Professional installation recommended to preserve factory wiring and features
  • Route wiring away from moving parts and heat sources
  • Avoid exposure to moisture and liquids during installation and operation
  • Honda Civic 2017 and newer
