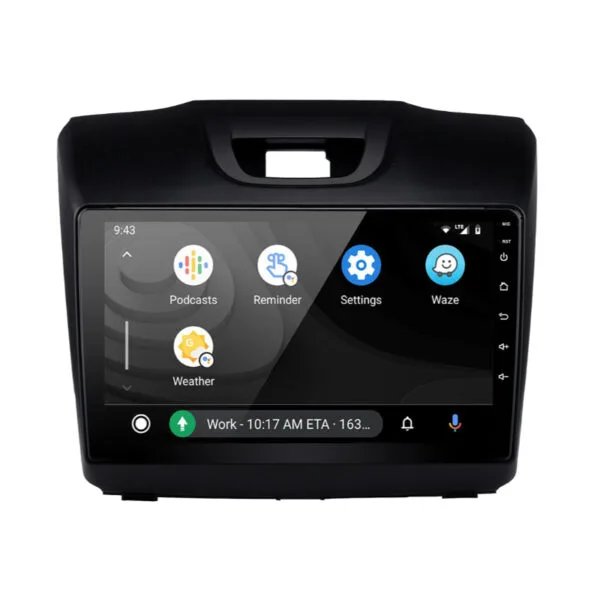

OneNav ON115-10A 9in Isuzu Head Unit with RK-PX6

OneNav ON115-10A 9in Isuzu Head Unit with RK-PX6

R11,895.00

User-friendly interface with 3 USB ports and OneConnect phone display and control; retains original radio functions, supports advanced Bluetooth calling and offline maps for navigation.

SKU ON115-10A Category Tag Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

The OneNav ON115-10A is a 9-inch in-dash multimedia head unit developed for Isuzu vehicles from 2012 onward. It uses a Rockchip RK-PX6 CPU with Mali-T864 GPU, 4G RAM and optional 64G flash, and a 1280×720 9-inch capacitive touch screen supporting five-point touch.

Connectivity includes Ublox6M GPS, NXP6686 RDS radio, 3x USB ports, RTL8188CTV WiFi and CSR Bluetooth. The unit integrates vehicle functions to retain steering wheel controls, parking sensor and air con displays, and supports offline maps, 4x50W TDA7560 amplification, 5.1 RCA output, 15-band DSP and optional TPMS, reverse camera, OBD and DVR.

  • CPU: Rockchip RK-PX6 Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864
  • Memory: RAM 4G; Flash 64G optional
  • Display: 9 inch 16:9 1280×720 capacitive touch panel G+G 5-point
  • Radio: NXP6686 with RDS support
  • GPS: Ublox6M
  • Power amplifier: TDA7560 4x50W
  • A/V I/O: Video out 2 channel; Video in 1 channel; Audio out 2 channel; Audio in 1 channel
  • RCA: 5.1 channel
  • USB: 3x ports
  • WiFi: RTL8188CTV
  • Bluetooth: CSR with contact copy support and A2P audio playback
  • DSP: 15-band equalizer
  • Video decoding: 4K H.265 H.264 MPEG4 XVID WMV VC-1 MPEG2 MP AVS RV RMVB Sorenson Spark VP8 up to specified bitrates
  • Audio decoding: MP3 WMA RA OGG WAV APE FLAC AC3 DTS
  • Picture formats: JPG BMP PNG TIFF JIF
  • Certifications: CE and RoHS compliant
  • Environmental: Operating temperature -20~70°C; Storage temperature -40~85°C; Humidity operation 0~90% non-condensed; Storage 0~90% non-condensed
  • 9 inch capacitive touchscreen with 1280×720 resolution
  • OneConnect phone display and control for mirrored operation
  • Retains original vehicle functions including steering wheel controls, parking sensor and air con display
  • Rockchip RK-PX6 processor with Mali-T864 GPU
  • 3x USB ports, RTL8188CTV WiFi and CSR Bluetooth
  • Ublox6M GPS and offline map support
  • Integrated 4x50W TDA7560 amplifier and 15-band DSP
  • Disconnect vehicle battery before installation
  • Professional installation recommended to preserve vehicle functions and wiring
  • Avoid exposure to moisture and extreme conditions outside specified temperature and humidity ranges
  • Observe operating temperature -20~70°C and storage temperature -40~85°C
  • Unit complies with CE and RoHS standards
  • Isuzu vehicles 2012 and later
