Phoenix Gold ZXM700.5 – 5-Channel Mini Amplifier

Phoenix Gold ZXM700.5 – 5-Channel Mini Amplifier

R4,499.00

Compact five-channel Class-D amplifier powering four full-range speakers and a dedicated subwoofer, with adjustable crossovers, bass boost and high- or low-level inputs.

Installation is excluded from the advertised product price unless specifically stated otherwise. Should you require professional installation, please contact the Rivonia Car Sound team for advice and a separate quotation. Additional installation accessories may be required, depending on the vehicle and product.

SKU ZXM700.5 Category Brand:

Vehicle logos indicate compatibility only. This product is not manufactured or endorsed by the vehicle brand.

Compact five-channel Class-D amplifier designed to power four full-range speakers and a dedicated subwoofer from one chassis. Rated output is 4 x 60W + 230W at 4 ohms or 4 x 100W + 350W at 2 ohms, with 2 x 200W bridged at 4 ohms.

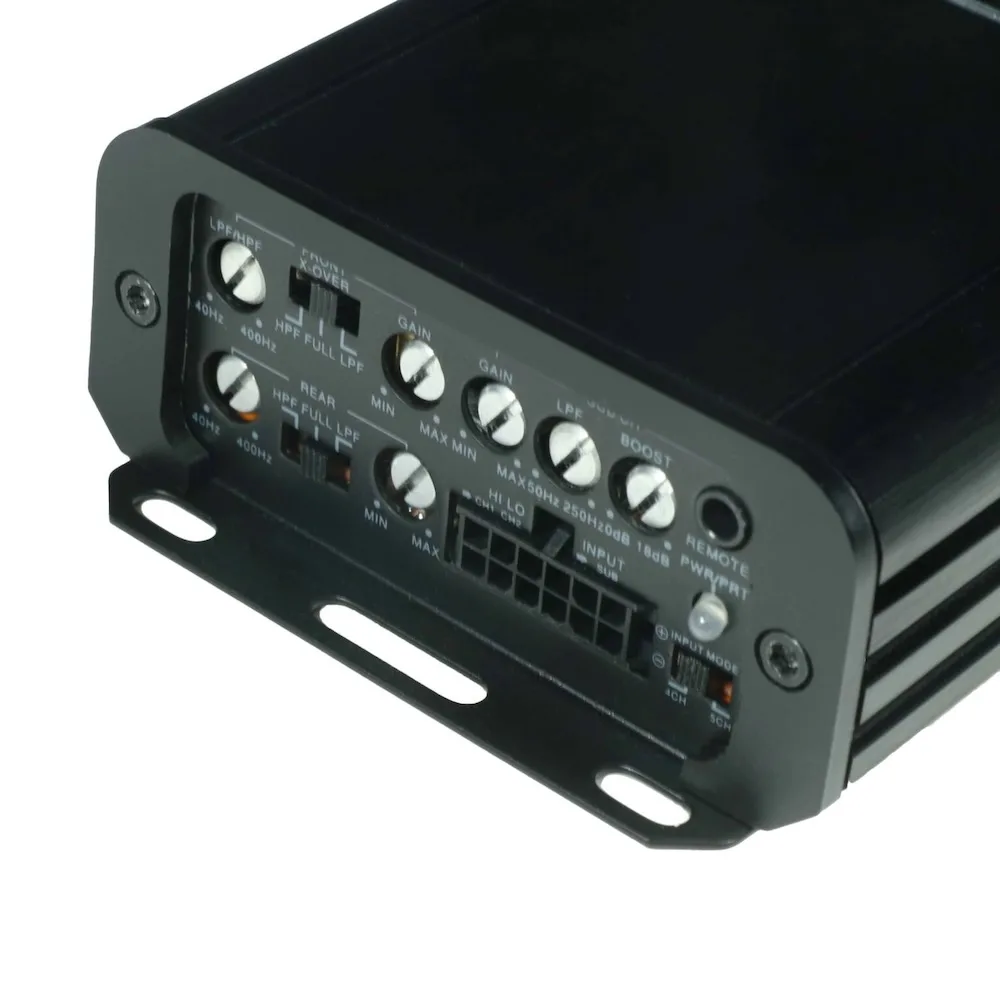

Adjustable high-pass and low-pass filters support the full-range channels, with a dedicated 24dB low-pass filter for the sub channel. High- and low-level inputs, high-level auto turn-on, 0–18dB bass boost and the included remote gain controller support flexible installation.

  • Product code: ZXM700.5
  • Type: Class-D 5-channel mini amplifier
  • RMS power: 4 x 60W + 230W at 4 ohms
  • RMS power: 4 x 100W + 350W at 2 ohms
  • Bridged RMS power: 2 x 200W at 4 ohms
  • Frequency response: 20Hz–25kHz front/rear; 10Hz–260Hz sub channel
  • Total harmonic distortion: less than 1%
  • Front/rear high-pass and low-pass filters: 40Hz–400Hz, 12dB/octave
  • Sub-channel low-pass filter: 50Hz–250Hz, 24dB/octave
  • Sub-channel bass boost: 0–18dB at 45Hz
  • Input sensitivity: 0.34V–8V
  • Input modes: 4-channel or 5-channel
  • Operating voltage: 8.6V–16.6V
  • Remote gain controller included
  • Dimensions: 186 x 83.1 x 37.3mm excluding mounting feet; 202 x 83.1 x 37.3mm including feet
  • Compact Class-D five-channel design
  • Four full-range channels plus a dedicated subwoofer channel
  • Adjustable high-pass and low-pass filters
  • 0–18dB sub-channel bass boost at 45Hz
  • High- and low-level inputs
  • Select between four- and five-channel input modes
  • High-level input auto turn-on
  • Remote gain controller included
  • Low-level input
  • High-level speaker input
  • Selectable 4-channel or 5-channel input mode
  • Automatic turn-on with high-level input
  • Remote gain controller connection
  • Disconnect vehicle battery before installation
  • Use the correct gauge wiring and fuse rated to the system
  • Secure all wiring away from moving parts and heat sources
  • Avoid exposing the amplifier to water or excessive moisture
  • Consult a professional installer if unsure about wiring or mounting
  • Cars
  • Trucks
  • SUVs
  • Vehicles with limited installation space
