MATCH UP10 DSP 10-Channel Amp for OEM Systems


MATCH UP10 DSP 10-Channel Amp for OEM Systems

R22,499.00

Compact 10-channel amplifier with 11-channel DSP, eight highlevel inputs, optical input and MEC slot; designed to upgrade multi-channel factory sound systems and provide flexible routing and effects.

Request a quote for Installation
SKU M111003 Category Tag Brand:

No results found.

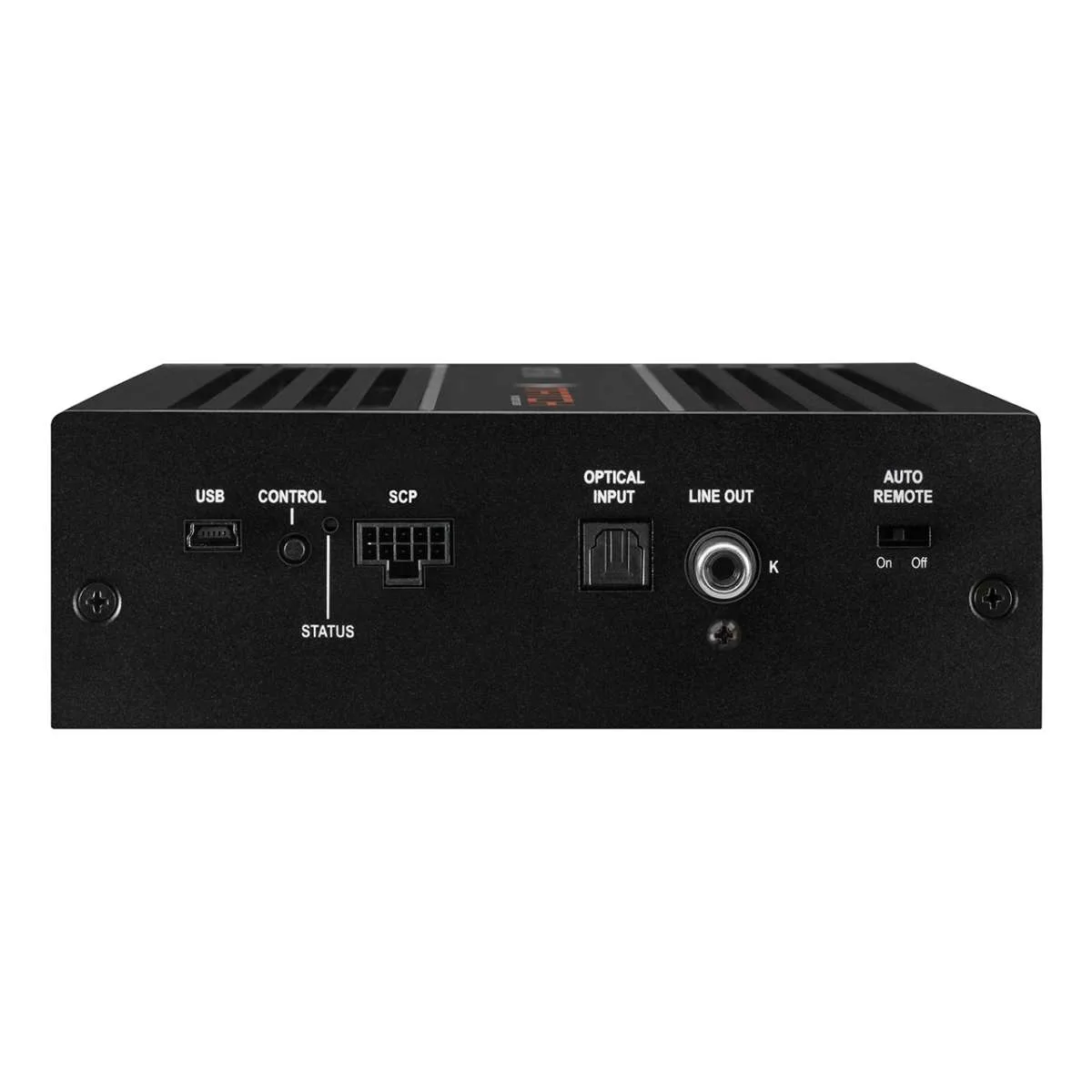

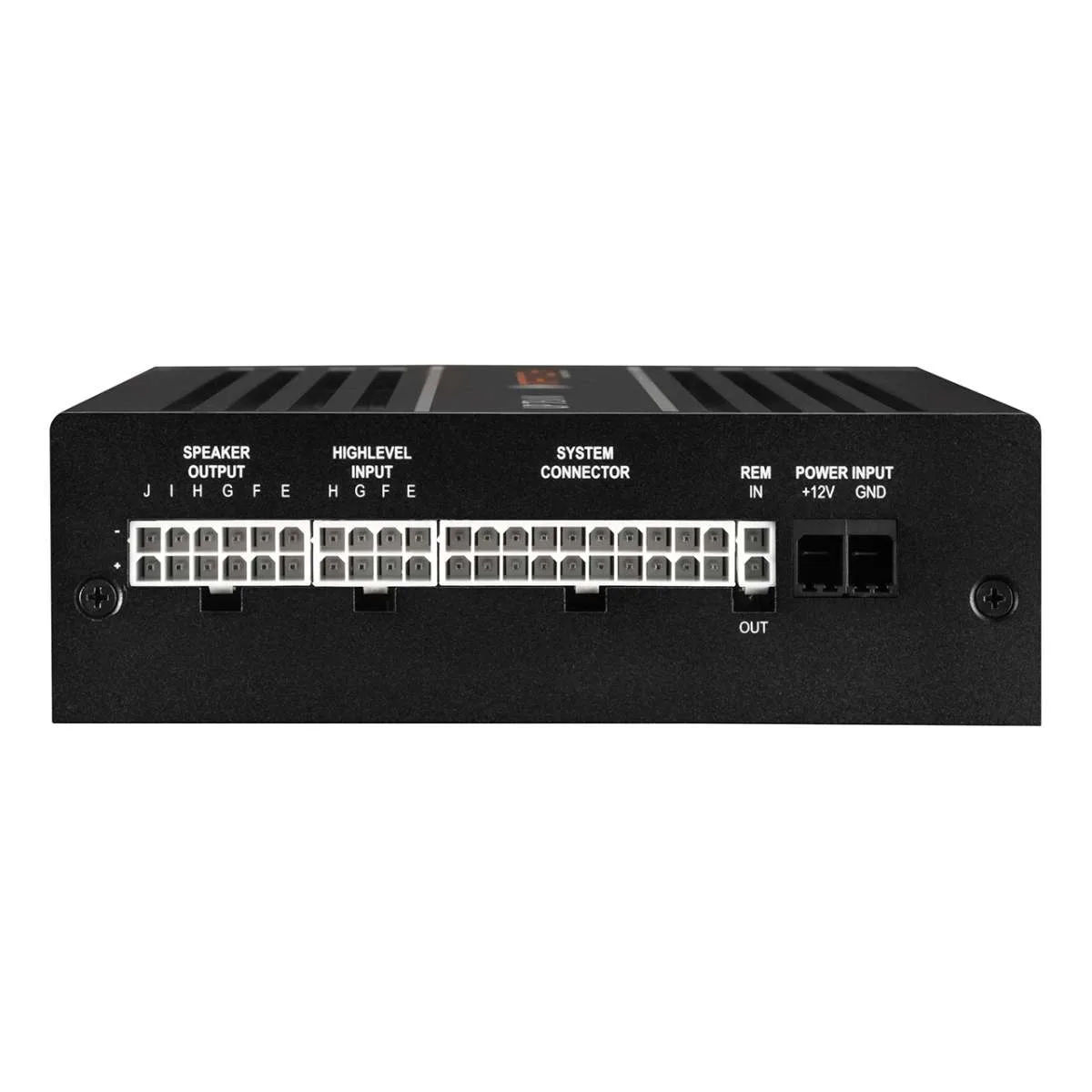

The MATCH UP10 DSP is a compact 10-channel upgrade amplifier with an 11-channel DSP designed to integrate with multi-channel factory sound systems where speaker-level inputs prevent simple replacements. It provides ten amplifier outputs, a mono line output, eight highlevel inputs including two high-power inputs up to 32 V, and an optical SPDIF input to maximize connectivity.

The unit uses Audiotec Fischers 32 Bit ACO coprocessing platform and 64 Bit fixed point DSP for fast control, channel-separated input EQ and sound effects such as Augmented Bass Processing and RealCenter. Virtual Channel Processing and the MATCH Extension Card slot allow flexible routing and optional input modules to ease integration with modern OEM systems.

  • Output Power: Channels A-H 8 x 65 Watts (min 3 Ohms); Channels I-J 2 x 90 Watts at 4 Ohms and 2 x 160 Watts at 2 Ohms
  • Amplifier Technology: Class GD
  • Inputs: 8 x highlevel inputs (two high-power inputs up to 32 Volts), 1 x optical SPDIF (12 – 96 kHz), 1 x Remote In
  • Outputs: 10 x speaker outputs, 1 x mono RCA line output (3 Volts), 1 x Remote Out
  • DSP: 64 Bit fixed point DSP, 11 processed channels, ACO coprocessor 295 MHz (1.2 billion MAC operations/second), 48 kHz sampling
  • Signal Converters: BurrBrown A/D and D/A
  • Frequency Response: 10 Hz – 22,000 Hz
  • Signal-to-Noise Ratio: Digital 105 dB A-weighted; Analog 103 dB A-weighted
  • Distortion (THD): < 0.03%
  • Damping Factor: > 100
  • Input Sensitivity: Channels A-F 4 – 16 Volts; Channels G-H 4 – 16 Volts or 8 – 32 Volts
  • Input Impedance Highlevel: 9 – 33 Ohms with ADEP.3
  • Operating Voltage: 10.5 – 18 Volts (max. 5 sec. down to 6 Volts)
  • Power Rating: DC 12 V 60 A max
  • Idle Current: 500 mA
  • Max Remote Output Current: 500 mA
  • Fuse: 2 x 25 A LP-Mini-fuse (APS)
  • Operating Temperature Range: -40 C to +70 C
  • Dimensions (H x W x D): 46 x 145 x 163 mm / 1.81 x 5.71 x 6.42 inches
  • Ultra efficient 10-channel amplifier with 1-channel line output and 11-channel DSP
  • Designed to upgrade multi-channel factory sound systems using highlevel inputs
  • 8 highlevel inputs including two high-power inputs up to 32 Volts with ADEP.3 circuit
  • Virtual Channel Processing (VCP) for flexible routing and FX assignment
  • ACO 32 Bit coprocessor with fast DSP control and input signal analyzer (ISA) and InputEQ
  • 64 Bit fixed point DSP and sound effects including Augmented Bass Processing and RealCenter
  • MATCH Extension Card slot (MEC) for optional modules such as Bluetooth Audio Streaming or high-resolution USB audio
  • Optical SPDIF input (12 – 96 kHz) and mono RCA line output for subwoofer amplification
  • Start-Stop capable and compact design for tight installation locations
  • Disconnect vehicle battery before installation
  • Install using correct fusing and wiring; use the supplied fuse types or equivalent
  • Mount unit in a dry, ventilated location with secure mechanical fixation
  • Professional installation recommended for vehicles with factory amplified systems
  • Unit supports Start-Stop operation down to 6 Volts; follow vehicle manufacturer guidance
  • Universal fit for vehicles with multi-channel OEM amplified sound systems
  • Integration with specific factory systems may require optional MATCH harnesses or MEC extension modules
